Deactivating (Muting) Animation in the Dopesheet




You can use the dopesheet to temporarily deactivate animation or an operator so that it doesn't have an effect on the object. Deactivating the animation or operator doesn't remove it from the object, it simply mutes its effect.

You can deactivate tracks and regions for any type of animation, including function curves, constraints, expressions, and deform operators (including envelopes).

Constraints and expressions have an Active parameter while deform operators have Mute parameters (deformations) that can be on or off (they are considered Boolean). See Deactivating Boolean Parameters for more information on these parameters.

If an IK chain's effector position is animated and you deactivate the animation in the dopesheet, the effector is considered to be "not animated" at those frames and the chain behaves like it's animated with FK. See Animating the Effector [Character Animation] for more information.

Deactivating Tracks

You can activate and deactivate a parameter's animation by clicking the activation box at the left of its track or by choosing a menu command.

NoteThe activation box for an unanimated parameter's track is gray to indicate that there is no animation to be activated/deactivated.

To deactivate a track, do one of the following:

  • Click the green box at the left end of any track so that it turns red.

  • Select one or more tracks and choose Edit Deactivate Tracks.

To activate a track, do one of the following:

  • Click the red box at the left end of any track so that it turns green.

  • Select one or more tracks and choose Edit Activate Tracks.

A

Activation box for the track is green when the parameter's animation is active. Click the box to toggle its state.

B

Activation box is red when the parameter's animation is inactive.

C

When inactive, the parameter's animation icon turns white to show that its animation is muted.

D

When the tracks are collapsed, the box is stippled green and black if there is a combination of active and inactive tracks in the group of parameters.

Deactivating Animation in Regions

You can deactivate a region of any track so that the frames in that region don't contribute to the animation. Deactivated regions are displayed in darker gray.

  1. Activate the Region tool (press the Q key or click the icon in the toolbar) and draw one or more regions.

  2. Do one of the following:

    • Click the Deactiv button on the toolbar.

    • Right-click in the region and choose EditDeactivate Region.

    • Choose Edit Deactivate Region from the toolbar.

To activate animation in a region:

  1. With the Region tool active, draw one or more regions over deactivated frames.

  2. Do one of the following:

    • Click the Activ button on the toolbar.

    • Right-click in the region and choose Edit Activate Region.

    • Choose EditActivate Region from the toolbar.

Deactivating Boolean Parameters

Boolean parameters are parameters that can be either on or off. Constraints and expressions have an Active parameter that is Boolean, while deform operators (deformations) have a Mute parameter that is Boolean. Because the Active and Mute parameters have the opposite meaning, you must be careful to what the state of the tracks and regions mean in each case (see the parameter descriptions in this section for information).

Boolean tracks have different colors and appearance from regular fcurve tracks. When they are inactive, their frames are dark gray and shown on the bottom half of the track; and when they are active, their frames are a light sand color and shown on the upper half of the track.

NoteFor an unanimated Boolean parameter, clicking the red/green activation box at the end of its track toggles the constraint or deformer's activeness. For example, if you display a track for the position constraint's unanimated Active parameter and you click its activation box, you toggle the constraint's activeness.

To see the Active or Mute parameters in the dopesheet:

If the All Nodes filter is not already active in the animation explorer's Explorer menu, make sure that you have the correct filter selected:

  • To see the Active parameter for constraints, choose Explorer More Animation Properties.

  • To see the Mute parameter for Deform operators, choose Explorer More Modeling Properties.

Active Parameters

When an Active parameter is inactive, the constraint or expression operator is also inactive; when an Active parameter is active, so is the operator.

  • You can deactivate and activate Active parameter tracks as you do for any parameter (see Deactivating Tracks).

    When the Active parameter's track is deactivated, so is the operator.

  • You can deactivate and activate regions for the Active parameter as you do for any parameter (see Deactivating Animation in Regions).

    When the Active parameter's region of frames is deactivated, the operator is also deactivated over those frames.

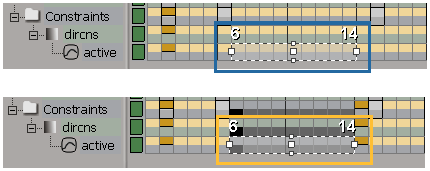

    On the top, the Active parameter for a constraint with a region that is active (sand colored). This means that the operator is also active.

    On the bottom, the Active parameter is inactive (dark gray), which deactivates the constraint over these frames.

Mute Parameters

When a Mute parameter for a deform operator is inactive, it means that the deform operator is active; when Mute is active, the operator isn't.

  • To mute/unmute Mute parameter tracks, deactivate or activate tracks as you do for any parameter (see Deactivating Tracks).

    When the Mute parameter track is deactivated, the deform operator is then active. Likewise, when the Mute track is active, the deform operator is not active.

  • To mute/unmute Mute parameters in a region, create a region of frames and do either of the following:

    • Click the Mute button on the toolbar to mute (deactivate) the deform operator.

    • Click the Unmute button to unmute (activate) the deform operator.

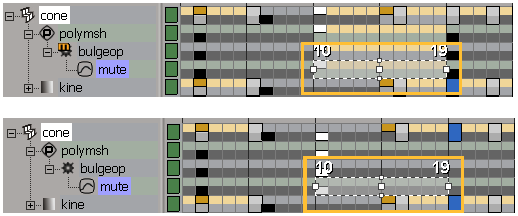

      On the top, the Mute parameter for a Bulge operator with a region that is active (sand colored). This means that the operator is muted.

      On the bottom, the Mute parameter with a region that is inactive (dark gray), which activates (unmutes) the Bulge operator over these frames.
