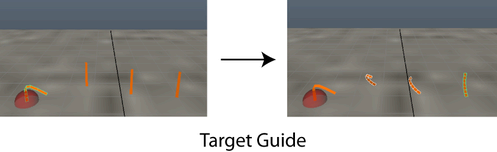

Target Guides





Lets you deform selected guides by blending their shape towards the shape of a specified target guide

Set Target

Sets the selected guide as the target guide.

ShapeBlend

Sets the amount of the target guide's shape that deforms the selected guides.

When set to 0, none of the target guide shape deforms the selected guides, while a value of 1 deforms the selected guides based on their distance from the target.

TipSnapAmount

Sets the amount that selected guides tilt in the direction of the target guide tip. TipSnapAmount is applied after ShapeBlend.

DistanceFalloff
Sets the weight of the selected guides deformation based on the distance from the target guide. Higher values decrease the weight of the deformation based on distance. A value of 1 will have little or no effect.
Move Selected Guide

Applies the Target Guide blend shape settings to the selected guides.

Clean Up

Resets the target guide to its normal state.
