Set per-material vector rendering options

You can control the following attributes on a per-material basis when vector rendering:

• Fill Object
• Edge Weight Presets
• Edge Weight
• Edge Style
• Edge Color
• Hidden Edges

For more information on the above attributes, see Render Settings: Maya Vector tab.

• Hidden Edges On Transparent
• Outlines At Intersections
• Edge Priority

For more information on the above attributes, see Vector Renderer Control.

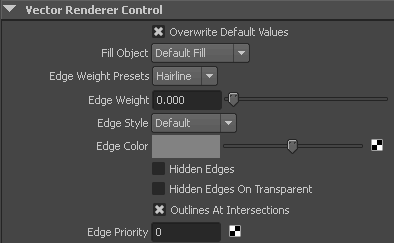

You can find these attributes in the Vector Renderer Control section in the Attribute Editor for the material node (for example, phong1).

To set vector rendering material attributes

1. Select the object with the material for which you want to set vector rendering attributes.
2. In the Attribute Editor, select the material node, (for example, blinn1).
3. Open the Vector Renderer Control section.
4. Turn on Overwrite Default Values.
5. Adjust the attributes as required.
