When you select the move tool, rotate tool, or scale tool, unique manipulators appear on the selected object. You can move,
rotate, or scale objects or components by dragging different parts of the manipulator.
Translation manipulator
- Drag a handle to move the selection along that axis.
- Drag the center handle to move freely across the view plane.
- Drag a plane handle to move the selection along multiple axes at once.
TipTo change the distance between the plane handles and the center of the transform manipulator, adjust the preference. See
Modeling Toolkit preferences.

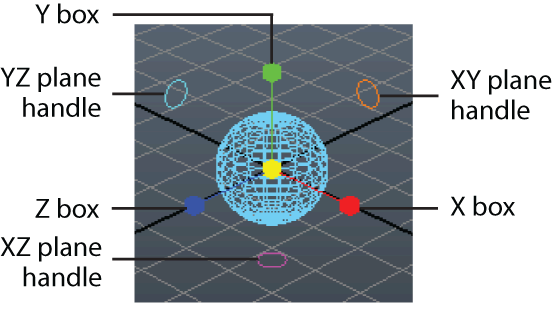

Scale manipulator
- Drag a box to scale the selection along that axis.
- Drag the center box to scale uniformly in all directions.
- Drag a plane handle to scale along multiple axes at once.
TipTo change the distance between the plane handles and the center of the scale manipulator, adjust the preference. See
Modeling Toolkit preferences.
