Paint skin weights




To paint smooth skin point weights

  1. Select the smooth skin objects you want to paint.
  2. Turn on smooth shading mode by selecting Shading > Smooth Shade All (hotkey: press 5).
  3. Open the Paint Skin Weights Tool (Skin > Edit Smooth Skin > Paint Skin Weights Tool > ).
    Note

    Reflection is disabled for the Paint Skin Weights Tool, but you can use Skin > Edit Smooth Skin > Mirror Skin Weights as an alternative method to reflect skin weights.

  4. Do one of the following to select a joint:
    • Select the joint name in the Influences list of the Paint Skin Weights Tool.
      Tip

      Use the Sort options and filter to adjust what displays in the Influences list, and use the Size controls to expand or shrink the Influences list. See Paint Skin Weights Tool for more information.

    • -click the joint you want to paint, then choose Select Influence in the marking menu that appears.
    Tip

    You can also -click a joint and press the up and down arrow keys to navigate your character's joint hierarchy.

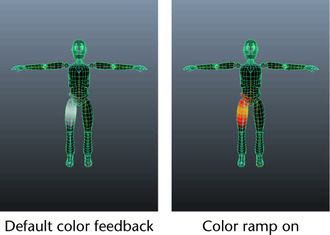

    When you select an influence to paint, the mesh displays color feedback (by default) in white and black. You can verify that Color Feedback is turned on under the Display heading. Turning on Color Feedback helps you identify the weights on the surface by representing them as grayscale values (smaller values are darker, larger values are lighter). You can also turn on Use color ramp under the Gradient heading to view weights in color.

    Note

    The default hotkey Alt+c (Windows and Linux) or Option+c (Mac OS X) turns Color Feedback on and off outside the Paint Skin Weights Tool.

  5. Make sure the brush, paint operation, value, and any other settings you want are set in the Paint Skin Weights Tool.

    For example, make sure that the Weight Type drop-down list is set to Skin Weight, and select the Normalize Weights mode you want. (See Paint Skin Weights Tool for the full list of options.)

  6. Drag the brush across the skin to paint weights.

    The values you paint set how much this joint influences the painted vertices relative to the other joints making up the smooth body (up to the number specified as the Max Influences in the Smooth Bind Options window).
