Effects > Create Surface Flow




Creates the surface flow effect.

Effects > Create Surface Flow >

Sets the options when creating a surface flow effect. Here are the options:

Flow Along Surface

Flow Group Name

Name of the Surface Flow node to contain the emitter, emitted particle object and other items added to the scene after you use the Surface Flow effect. To edit the Surface Flow attributes after you use the Surface Flow effect, you can select this name in the Outliner then display the Attribute Editor. If you don’t enter a name, Maya creates a default name.

You can delete all objects created by the Surface Flow effect by deleting the Surface Flow node from the Outliner.

Flow Creation Controls

Create Particle

If on, particles are created for the flow on the selected surface. If off, no particles are created. One exception is if you have particles from an existing flow selected. If you do, the selected particles are applied to the new flow, whether this option is on or off. Do this if you want to connect particles from an existing flow with a new one.

Create Particle Per Flow

If you have multiple surfaces selected and you want to create a separate flow for each selected surface, turn this option on. Turn this option off to create one flow across all selected surfaces.

Manipulators Along

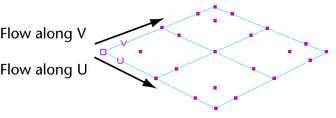

Sets the direction of the flow. The direction is specified in the U / V coordinate system, which is local to the surface. Positive U or V is forward, while negative U or V is backward. You can see which direction is U or V by selecting the model and switching to Component mode (but you must be out of Component mode when you create the effect).

Control Resolution

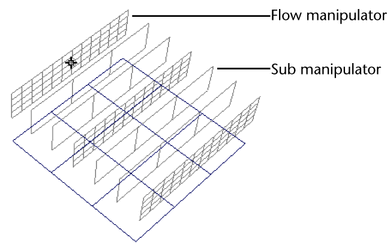

Sets the number of flow manipulators. Flow manipulators let you control particle speed, distance from surface, and other settings for a specified area. By default, all flows have at least two manipulators for the beginning and end. Specify more manipulators depending on how many areas along the surface you want to control. However, the more manipulators you specify, the longer it takes to create.

Sub-Control Resolution

Sets the number of sub manipulators between each flow manipulator. Sub manipulators control the flow of particles, but you cannot manipulate them directly. They are automatically spaced between flow manipulators to follow the curve of the surface. The more your surface varies along the direction of flow, the more sub manipulators you should have. However, the more sub manipulators you specify, the longer it takes to create.

Manipulator Resolution

Sets the number of analysis points the flow manipulators use to direct particles. The more your surface varies along the manipulator, the greater your resolution should be.

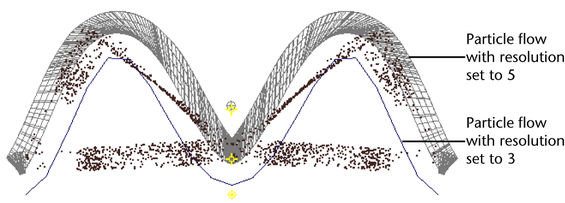

The following illustration shows the front view of a surface with two flows, but different Manipulator Resolution settings. A resolution of 5 created the particles on top, while a resolution of 3 created the particles on the bottom.

Flow Attribute Controls

See Flow Attribute Controls.
