Selection preferences




You can set the following preferences in the Selection category of the Preferences window.

Modifiers

Modifiers control Maya selection operations. They work with masks to control what is displayed when you select items. You can turn on one or more of the following:

Single marquee select

Selects the first object in a hierarchy.

Click drag select

Lets you perform one-step click-dragging with the transformation tools. You can move one object using the Move Tool, then click a second object and the Move Tool displays. This means you do not have to select the object and the Move Tool again—you can keep using the Move Tool on any subsequent selected object. The default is off.

Affects active

If you change from object to component selection mode, the selected object is not affected. This option lets you select objects and components at the same time. The default is on.

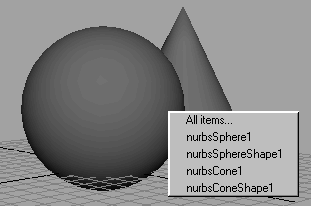

Pick chooser

When objects overlap in the view, lets you display a pop-up list of the objects so you can select them. -click the overlap area to display the menu. The default is off. Your selection is highlighted in the scene view as you select an item in this list. Currently-selected items are marked with a box when the list appears. (This was formerly called Popup Menu selection.)

Note

You must hold down the left mouse key on Linux to select an item in this list.

Ignore selection priority

Treats all objects with the same priority. The selection order does not matter. The default is off.

Expand popup list

If you turned on Expand Popup List, displays all the pop-up list of objects and everything underneath it in the hierarchy. The default is off.

Preselection Highlight

Highlights components in a different color as the mouse cursor passes over them.

Display pick chooser for components

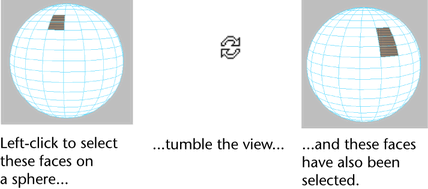

Choose to have pop-up selection on for objects, and off for components. This is useful to prevent the following situation: you have the Pick Chooser menu turned on and you’re in component mode, you can accidentally select faces or vertices on the opposite side of an object when you don’t want to (this is most obvious when Select faces with whole face is on).

This behavior is a consequence of the Pick Chooser menu. To make sure that only the clicked-on components are selected, turn on Disable Pick Chooser for Components.

Asset centric selection

This option allows you to select an asset by selecting any object it encapsulates.

Camera based selection

When on, you cannot select components obscured by the camera’s point of view in shaded mode (for example, back facing components or components hidden behind foreground components).

Auto-select asset

This option applies whenever you have specifed a node as a selction transform. When an advanced asset is black boxed and a node is published as a selection transfrom, if you then select that node, the advanced asset will be selected as well.

Track selection order

This option allows Maya to start tracking the selection order of components.

Selection type effects active

This option applies to polygon components only. When on, this option backs up your component selection when you switch selection type, and restores the type that you are switching to.

Click box size

This option controls the size of the selection area around the mouse pointer, or click box. If you are having problems with selecting objects or components, try adjusting this option. For example, a higher click box size might make it easier to select curves. Increasing the click box size is also useful if you have a high resolution screen display.

Polygon Selection

Select faces with

Specify how you want to select polygonal faces:

Center

Select polygonal faces at their center. In other words, you must click the box at the center of the face to select the entire face.

Whole Face

Select the entire face. You can click anywhere on the face, even any face edge, to select it.

Priority

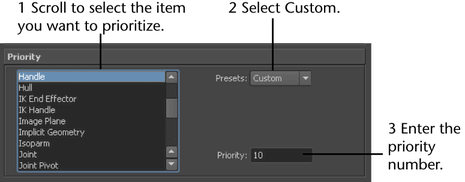

You can specify a selection priority for objects and components. By default, NURBS curves have a higher selection priority than surfaces. This means that Maya selects the NURBS curve before the surface when you select geometry that contains both NURBS curves and surfaces.
