Detailed Description

The base class of geometric objects that support control point deformations (e.g.

KFbxMesh, KFbxNurb, and KFbxPatch). The KFbxGeometry provides support for the following kinds of deformations.

Skin deformation deformers
Vertex cache deformers
Geometry weighted maps
Shapes

Most of the methods of KFbxGeometry are wrappers to simplify the access/manipulation of the connections to the deformers. For example, calling the GetDeformerCount() method is the same thing as calling:

 geometry.GetSrcObjectCount(KFbxDeformer::ClassId)

Examples:: ExportScene01/main.cxx, ExportScene02/main.cxx, ExportScene03/main.cxx, ImportScene/DisplayAnimation.cxx, ImportScene/DisplayLink.cxx, ImportScene/DisplayMaterial.cxx, ImportScene/DisplayShape.cxx, and ImportScene/DisplayTexture.cxx.

Definition at line 83 of file kfbxgeometry.h.

#include <kfbxgeometry.h>

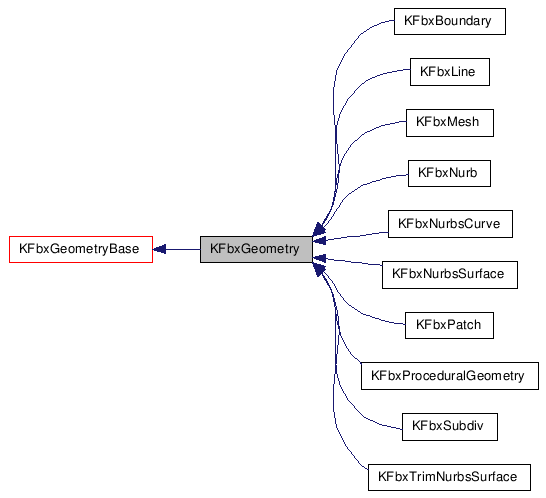

Inheritance diagram for KFbxGeometry:

[legend]

List of all members.

Public Types
enum	ESurfaceMode { eRAW, eLOW_NO_NORMALS, eLOW, eHIGH_NO_NORMALS, eHIGH }
	NURBS and Patches surface modes. More...
Public Member Functions
virtual EAttributeType	GetAttributeType () const
	Returns the node attribute type.
virtual KFbxObject &	Copy (const KFbxObject &pObject)
	Copy an object content into this object.
void	CleanShapeChannels (KFbxAnimLayer *pAnimLayer)
	Rename the shapes from the old MotionBuilder 4.01 format to the new one.
void	CleanShapeChannel (KFbxAnimLayer *pAnimLayer, int pShapeIndex)
	Rename the shapes from the old MotionBuilder 4.01 format to the new one.
void	CreateShapeChannelProperties (KString &pShapeName)
void	ConvertShapeNamesToV5Format (KString pTakeNodeName)
void	ConvertShapeNamesToV5Format (KString pTakeNodeName, int pShapeIndex)
void	RevertShapeNamesToV6Format (KString pTakeNodeName)
void	RevertShapeNamesToV6Format (KString pTakeNodeName, int pShapeIndex)
void	ClearTemporaryShapeNames ()
Deformer Management
int	AddDeformer (KFbxDeformer *pDeformer)
	Adds a deformer to this geometry (as mentioned in the description of this class, adding a deformer is a synonym for "connect a deformer").
KFbxDeformer *	RemoveDeformer (int pIndex)
	Remove a deformer.
int	GetDeformerCount () const
	Returns the number of deformers.
KFbxDeformer *	GetDeformer (int pIndex) const
	Returns the deformer at the specified index.
int	GetDeformerCount (KFbxDeformer::EDeformerType pType) const
	Returns the number of deformers of a specified type.
KFbxDeformer *	GetDeformer (int pIndex, KFbxDeformer::EDeformerType pType) const
	Returns the deformer of a specified type at the specified index.
Geometry Weighted Maps Management
KFbxGeometryWeightedMap *	GetSourceGeometryWeightedMap ()
	Returns the source geometry weighted map that is connected to this geometry.
int	GetDestinationGeometryWeightedMapCount () const
	Returns the number of destination geometry weighted map(s) that are connected to this geometry.
KFbxGeometryWeightedMap *	GetDestinationGeometryWeightedMap (int pIndex)
	Returns the destination geometry weighted map at a specified index.
Shape Management - Deprecated functions.
All the methods in this section have been deprecated and will be removed in the next release. See also: KFbxBlendShape, KFbxBlendShapeChannel, KFbxAnimCurve, KFbxShape.
virtual K_DEPRECATED int	AddShape (KFbxShape pShape, char const pShapeName)
	Deprecated.
virtual K_DEPRECATED KFbxShape *	GetShape (int pIndex)
	Deprecated.
virtual K_DEPRECATED KFbxShape const *	GetShape (int pIndex) const
	Deprecated: See code snippet in KFbxGeometry::GetShape().
virtual K_DEPRECATED char const *	GetShapeName (int pIndex) const
	Deprecated: See code snippet in KFbxGeometry::GetShape() and use KFbxObject::GetName() on the desired shape.
virtual K_DEPRECATED KFbxAnimCurve *	GetShapeChannel (char const pShapeName, KFbxAnimLayer pLayer, bool pCreateAsNeeded=false)
	Deprecated: See code snippet in KFbxGeometry::GetShape().
virtual K_DEPRECATED KFCurve *	GetShapeChannel (int pIndex, bool pCreateAsNeeded=false, char const *pTakeName=NULL)
	Deprecated: See code snippet in KFbxGeometry::GetShape().
virtual K_DEPRECATED KFbxAnimCurve *	GetShapeChannel (int pIndex, KFbxAnimLayer *pLayer, bool pCreateAsNeeded=false)
	Deprecated: See code snippet in KFbxGeometry::GetShape().
Shape Management
bool	AddShape (int pBlendShapeIndex, int pBlendShapeChannelIndex, KFbxShape *pShape, double pPercent=100)
	Add a shape to the specified blend shape deformer and blend shape channel of this geometry.
void	ClearShape ()
	Removes all the shapes without destroying them.
int	GetShapeCount () const
	Returns the number of shapes.
int	GetShapeCount (int pBlendShapeIndex, int pBlendShapeChannelIndex) const
	Returns the number of shapes.
KFbxShape *	GetShape (int pBlendShapeIndex, int pBlendShapeChannelIndex, int pShapeIndex)
	Returns the shape found at the specified index on a blend shape channel of a blend shape deformer.
KFbxShape const *	GetShape (int pBlendShapeIndex, int pBlendShapeChannelIndex, int pShapeIndex) const
	Returns the shape found at the specified index on a blend shape channel of a blend shape deformer.
KFbxAnimCurve *	GetShapeChannel (int pBlendShapeIndex, int pBlendShapeChannelIndex, KFbxAnimLayer *pLayer, bool pCreateAsNeeded=false)
	Get the shape animation curve.
Pivot Management
The geometry pivot is used to specify additional translation, rotation, and scaling information applied to all control points when the model is exported.
KFbxXMatrix &	GetPivot (KFbxXMatrix &pXMatrix) const
	Returns the pivot matrix.
void	SetPivot (KFbxXMatrix &pXMatrix)
	Sets the pivot matrix.
void	ApplyPivot ()
	Applies the pivot matrix to all vertices/normals of the geometry.
Default Animation Values - Deprecated functions.
All the methods in this section have been deprecated and will be removed in the next release. These functions provides direct access to default animation values that are specific to a geometry. These functions only work if the geometry has been associated with a node.
K_DEPRECATED void	SetDefaultShape (int pIndex, double pPercent)
	Sets the default deformation for a specified shape.
K_DEPRECATED void	SetDefaultShape (char const *pShapeName, double pPercent)
	Sets the default deformation for a specified shape.
K_DEPRECATED const double	GetDefaultShape (int pIndex) const
	Returns the default deformation value for the specified shape.
K_DEPRECATED const double	GetDefaultShape (char const *pShapeName) const
	Returns the default deformation value for the specified shape.
Default Animation Values
These functions provides direct access to default animation values that are specific to a geometry. These functions only work if the geometry has been associated with a node.
void	SetDefaultShape (int pBlendShapeIndex, int pBlendShapeChannelIndex, double pPercent)
	Sets the default deformation for a specified shape.
void	SetDefaultShape (KFbxBlendShapeChannel *pBlendShapeChannel, double pPercent)
	Sets the default deformation for a specified shape.
double	GetDefaultShape (int pBlendShapeIndex, int pBlendShapeChannelIndex) const
	Returns the default deformation value for the specified shape.
double	GetDefaultShape (KFbxBlendShapeChannel *pBlendShapeChannel) const
	Returns the default deformation value for the specified shape.
Protected Member Functions
	KFbxGeometry (KFbxSdkManager &pManager, char const *pName)
virtual void	Destruct (bool pRecursive, bool pDependents)
virtual void	SetDocument (KFbxDocument *pDocument)
KString	CreateShapeChannelName (int pShapeIndex)
KString	CreateShapeChannelName (KString pShapeName)
void	CopyDeformers (KFbxGeometry const *pGeometry)
void	CopyShapes (KFbxGeometry const *pGeometry)
void	CopyPivot (KFbxGeometry const *pSource)
Protected Attributes
KArrayTemplate< KString * >	mShapeNameArrayV6
KArrayTemplate< KString * >	mShapeNameArrayV5
KArrayTemplate< KString * >	mShapeChannelNameArrayV5
KFbxXMatrix *	mPivot
KError	mError
Friends
class	KFbxScene
Error Management
enum	EError { eINDEX_OUT_OF_RANGE, eNULL_PARAMETER, eSHAPE_ALREADY_ADDED, eSHAPE_INVALID_NAME, eSHAPE_NAME_CLASH, eSHAPE_NO_CURVE_FOUND, eUNKNOWN_ERROR, eERROR_COUNT }
	Error identifiers. More...
KError &	GetError ()
	Retrieves the error object.
EError	GetLastErrorID () const
	Returns the last error code.
const char *	GetLastErrorString () const
	Returns the last error string.

Member Enumeration Documentation

enum ESurfaceMode

Search for all occurrences

NURBS and Patches surface modes.

This information is never directly used inside the FBX SDK. Applications can use these values if they wish to carry the "rendering" details of the NURBS and Patches. The FBX SDK guarantee that the value (member of the KFbxNurb, KFbxNurbSurface and KFbxPatch classes) is stored to FBX files and retrieved from them.

Remarks:: The enum has been defined in this class to avoid symbols duplication.

Enumerator:

eRAW	Search for all occurrences
eLOW_NO_NORMALS	Search for all occurrences
eLOW	Search for all occurrences
eHIGH_NO_NORMALS	Search for all occurrences
eHIGH	Search for all occurrences

Definition at line 383 of file kfbxgeometry.h.

    {
        eRAW,
        eLOW_NO_NORMALS,
        eLOW,
        eHIGH_NO_NORMALS,
        eHIGH
    } ESurfaceMode;

enum EError

Search for all occurrences

Error identifiers.

Enumerator:

eINDEX_OUT_OF_RANGE	The index used to access an item is out of range. Search for all occurrences
eNULL_PARAMETER	Requested pointer to shape object is `NULL`. Search for all occurrences
eSHAPE_ALREADY_ADDED	The specified shape has already been added to this object. Search for all occurrences
eSHAPE_INVALID_NAME	The provided name argument is empty. Search for all occurrences
eSHAPE_NAME_CLASH	The provided name is already used by another shape. Search for all occurrences
eSHAPE_NO_CURVE_FOUND	The shape's animation curve could not be found. Search for all occurrences
eUNKNOWN_ERROR	Generic error message. Search for all occurrences
eERROR_COUNT	Search for all occurrences

Reimplemented in KFbxNurb, KFbxNurbsCurve, and KFbxNurbsSurface.

Definition at line 520 of file kfbxgeometry.h.

    {
        eINDEX_OUT_OF_RANGE,
        eNULL_PARAMETER,
        eSHAPE_ALREADY_ADDED,
        eSHAPE_INVALID_NAME,
        eSHAPE_NAME_CLASH,
        eSHAPE_NO_CURVE_FOUND,
        eUNKNOWN_ERROR,
        eERROR_COUNT
    } EError;

Constructor & Destructor Documentation

KFbxGeometry	(	KFbxSdkManager &	pManager,
		char const *	pName
	)		`[protected]`

Member Function Documentation

virtual EAttributeType GetAttributeType ( ) const [virtual]

Search for all occurrences

Returns the node attribute type.

This method is derived in the more high level classes (KFbxMesh, KFbxNurbs, etc...) and returns the actual type of the geometry object.

Returns:: eUNIDENTIFIED

Reimplemented from KFbxLayerContainer.

Reimplemented in KFbxLine, KFbxMesh, KFbxNurb, KFbxNurbsCurve, KFbxNurbsSurface, KFbxPatch, KFbxSubdiv, KFbxBoundary, and KFbxTrimNurbsSurface.

int AddDeformer ( KFbxDeformer * pDeformer )

Search for all occurrences

Adds a deformer to this geometry (as mentioned in the description of this class, adding a deformer is a synonym for "connect a deformer").

Parameters:

pDeformer Pointer to the deformer to be added.

Returns:: Index of the added deformer.

Examples:: ExportScene01/main.cxx, ExportScene02/main.cxx, ExportScene03/main.cxx, and SwitchBinding/main.cxx.

KFbxDeformer* RemoveDeformer ( int pIndex )

Search for all occurrences

Remove a deformer.

Parameters:

pIndex Index of deformer to remove.

Returns:: Pointer to the removed deformer (or NULL if pIndex is out of range). If pIndex is out of range KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

Examples:: SwitchBinding/main.cxx.

int GetDeformerCount ( ) const

Search for all occurrences

Returns the number of deformers.

Returns:: The number of deformers that are connected to this geometry.

Examples:: ImportScene/DisplayAnimation.cxx, ImportScene/DisplayLink.cxx, ImportScene/DisplayShape.cxx, ViewScene/DrawScene.cxx, and ViewScene/InitScene.cxx.

KFbxDeformer* GetDeformer ( int pIndex ) const

Search for all occurrences

Returns the deformer at the specified index.

Parameters:

pIndex The specified deformer index.

Returns:: Pointer to the deformer (or NULL if pIndex is out of range). If pIndex is out of range, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

Examples:: ExportScene03/main.cxx, ImportScene/DisplayAnimation.cxx, ImportScene/DisplayLink.cxx, ImportScene/DisplayShape.cxx, SwitchBinding/main.cxx, ViewScene/DrawScene.cxx, and ViewScene/InitScene.cxx.

int GetDeformerCount ( KFbxDeformer::EDeformerType pType ) const

Search for all occurrences

Returns the number of deformers of a specified type.

Parameters:

pType The specified deformer type.

Returns:: The number of deformers of the specified type.

KFbxDeformer* GetDeformer	(	int	pIndex,
		KFbxDeformer::EDeformerType	pType
	)		const

Search for all occurrences

Returns the deformer of a specified type at the specified index.

Parameters:

pIndex	The specified deformer index.
pType	The specified deformer type.

Returns:: Pointer to the deformer (or NULL if pIndex is out of range). If pIndex is out of range, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxGeometryWeightedMap* GetSourceGeometryWeightedMap ( )

Search for all occurrences

Returns the source geometry weighted map that is connected to this geometry.

Returns:: Pointer to the source geometry weighted map that is connected to this geometry if any.

int GetDestinationGeometryWeightedMapCount ( ) const

Search for all occurrences

Returns the number of destination geometry weighted map(s) that are connected to this geometry.

Returns:: The number of destination geometry weighted map(s) that are connected to this geometry.

KFbxGeometryWeightedMap* GetDestinationGeometryWeightedMap ( int pIndex )

Search for all occurrences

Returns the destination geometry weighted map at a specified index.

Parameters:

pIndex The specified index.

Returns:: Pointer to the destination geometry weighted map at the specified index (if any).

virtual K_DEPRECATED int AddShape	(	KFbxShape *	pShape,
		char const *	pShapeName
	)		`[virtual]`

Search for all occurrences

Deprecated.

Use this code instead:

 KFbxBlendShape* lBlendShape = KFbxBlendShape::Create(pScene,"MyBlendShape");
 KFbxBlendShapeChannel* lBlendShapeChannel = KFbxBlendShapeChannel::Create(pScene,"MyBlendShapeChannel");
 KFbxShape* lShape = KFbxShape::Create(pScene,"StretchedShape");
 lBlendShapeChannel->AddTargetShape(lShape);
 lBlendShape->AddBlendShapeChannel(lBlendShapeChannel);
 lGeometry->AddDeformer(lBlendShape);

Add a shape and the shape's associated name to this geometry.

Parameters:

pShape	Pointer to the shape object to be added.
pShapeName	Name of the shape.

Returns:

Index of the added shape, -1 if operation fails. If the operation fails, KFbxGeometry::GetLastErrorID() can return one of the following:

eNULL_PARAMETER: Pointer to shape is NULL.
eSHAPE_ALREADY_ADDED: Shape has already been added.
eSHAPE_INVALID_NAME: The name provided is empty.
eSHAPE_NAME_CLASH: The name provided is already used by another shape.

Remarks:: The name provided is stripped from the surrounding white space before it is compared to the other shape names. It is recommended not to prefix the shape name with its enclosing node name because MotionBuilder is known to strip this prefix and not restore it.

virtual K_DEPRECATED KFbxShape* GetShape ( int pIndex ) [virtual]

Search for all occurrences

Deprecated.

Use the following code snippet to:

Get Shapes and shape influences.

Find out which shape of the In-between blend-shapes is working at a given time pTime.

    int lBlendShapeDeformerCount = pMesh->GetDeformerCount(KFbxDeformer::eBLENDSHAPE);
    for(int lBlendShapeIndex = 0; lBlendShapeIndex<lBlendShapeDeformerCount; ++lBlendShapeIndex)
    {
        KFbxBlendShape* lBlendShape = (KFbxBlendShape*)pMesh->GetDeformer(lBlendShapeIndex, KFbxDeformer::eBLENDSHAPE);

        int lBlendShapeChannelCount = lBlendShape->GetBlendShapeChannelCount();
        for(int lChannelIndex = 0; lChannelIndex<lBlendShapeChannelCount; ++lChannelIndex)
        {
            KFbxBlendShapeChannel* lChannel = lBlendShape->GetBlendShapeChannel(lChannelIndex);

            if(lChannel)
            {
                // Get the percentage of influence of the shape.
                KFbxAnimCurve* lFCurve = pMesh->GetShapeChannel(lBlendShapeIndex, lChannelIndex, gCurrentAnimationLayer);
                if (!lFCurve) continue;
                double lWeight = lFCurve->Evaluate(pTime);

                //Find which shape should we use according to the weight.
                int lShapeCount = lChannel->GetTargetShapeCount();
                double* lFullWeights = lChannel->GetTargetShapeFullWeights();
                for(int lShapeIndex = 0; lShapeIndex<lShapeCount; ++lShapeIndex)
                {
                    KFbxShape* lShape = NULL;
                    if(lWeight > 0 && lWeight < lFullWeights[0])
                    {
                        lShape = lChannel->GetTargetShape(0);
                    }
                    if(lWeight > lFullWeights[lShapeIndex] && lWeight < lFullWeights[lShapeIndex+1])
                    {
                        lShape = lChannel->GetTargetShape(lShapeIndex+1);
                    }

                    if(lShape)
                    {
                        for (int j = 0; j < lVertexCount; j++)
                        {
                            // Add the influence of the shape vertex to the mesh vertex.
                            KFbxVector4 lInfluence = (lShape->GetControlPoints()[j] - lSrcVertexArray[j]) * lWeight * 0.01;
                            lDstVertexArray[j] += lInfluence;
                        }
                    }
                }//For each target shape
            }//If lChannel is valid
        }//For each blend shape channel
    }//For each blend shape deformer

Returns the shape found at the specified index.

Parameters:

pIndex The specified index.

Returns:: Pointer to the shape (or NULL if pIndex is out of range). If pIndex is out of range, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

virtual K_DEPRECATED KFbxShape const* GetShape ( int pIndex ) const [virtual]

Search for all occurrences

Deprecated: See code snippet in KFbxGeometry::GetShape().

Returns the shape found at the specified index.

Parameters:

pIndex The specified index.

Returns:: Pointer to the shape (or NULL if pIndex is out of range). If pIndex is out of range, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

virtual K_DEPRECATED char const* GetShapeName ( int pIndex ) const [virtual]

Search for all occurrences

Deprecated: See code snippet in KFbxGeometry::GetShape() and use KFbxObject::GetName() on the desired shape.

Returns the shape name found at the specified index.

Parameters:

pIndex The specified index.

Returns:: Shape name (or NULL if pIndex is out of range). If pIndex is out of range, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

virtual K_DEPRECATED KFbxAnimCurve* GetShapeChannel	(	char const *	pShapeName,
		KFbxAnimLayer *	pLayer,
		bool	pCreateAsNeeded = `false`
	)		`[virtual]`

Search for all occurrences

Deprecated: See code snippet in KFbxGeometry::GetShape().

Get the shape animation curve. The shape channel is an animatable property with a value range from 0 to 100 (with 100 being full shape deformation). The default value is 0.

Parameters:

pShapeName	The shape name.
pCreateAsNeeded	If `true`, creates the animation curve if it is not already present.
pLayer	The animation layer from which we want to get the requested animation curve.

Returns:

Animation curve (or NULL if an error occurred). If an error occurs, KFbxGeometry::GetLastErrorID() returns one of the following:

eINDEX_OUT_OF_RANGE: Shape index is out of range.
eSHAPE_NO_CURVE_FOUND: Shape curve could not be found.

Remarks:: If pLayer is left at NULL, the method will use the first layer of the Animation stack.

Examples:: ExportScene02/main.cxx, ExportScene03/main.cxx, ImportScene/DisplayAnimation.cxx, and ViewScene/DrawScene.cxx.

virtual K_DEPRECATED KFCurve* GetShapeChannel	(	int	pIndex,
		bool	pCreateAsNeeded = `false`,
		char const *	pTakeName = `NULL`
	)		`[virtual]`

Search for all occurrences

Deprecated: See code snippet in KFbxGeometry::GetShape().

Get the shape animation curve. This method is deprecated and should not be used anymore. Instead call the equivalent using the KFbxAnimLayer.

Parameters:

pIndex
pCreateAsNeeded
pTakeName

virtual K_DEPRECATED KFbxAnimCurve* GetShapeChannel	(	int	pIndex,
		KFbxAnimLayer *	pLayer,
		bool	pCreateAsNeeded = `false`
	)		`[virtual]`

Search for all occurrences

Deprecated: See code snippet in KFbxGeometry::GetShape().

Get the shape animation curve. The shape channel is an animatable property with a value range from 0 to 100 (with 100 being full shape deformation). The default value is 0.

Parameters:

pIndex	The shape index.
pCreateAsNeeded	If `true`, creates the animation curve if it is not already present.
pLayer	Animation layer from which we want to get the requested animation curve.

Returns:

Animation curve (or NULL if an error occurred). If an error occurs, KFbxGeometry::GetLastErrorID() returns one of the following:

eINDEX_OUT_OF_RANGE: Shape index is out of range.
eSHAPE_NO_CURVE_FOUND: Shape curve could not be found.

Remarks:: If pLayer is left NULL, use the first layer of the Animation stack.

bool AddShape	(	int	pBlendShapeIndex,
		int	pBlendShapeChannelIndex,
		KFbxShape *	pShape,
		double	pPercent = `100`
	)

Search for all occurrences

Add a shape to the specified blend shape deformer and blend shape channel of this geometry.

Parameters:

pBlendShapeIndex	The blend shape deformer index.
pBlendShapeChannelIndex	The blend shape channel index.
pShape	Pointer to the shape object to be added.
pPercent	The full deform percentage of this shape.

Returns:: true if success, false otherwise.

void ClearShape ( )

Search for all occurrences

Removes all the shapes without destroying them.

If shapes aren't explicitly destroyed before calling this function, they will be destroyed along with the SDK manager that created them.

int GetShapeCount ( ) const

Search for all occurrences

Returns the number of shapes.

Returns:: The number of shapes that have been added to this geometry.

Examples:: ViewScene/DrawScene.cxx.

int GetShapeCount	(	int	pBlendShapeIndex,
		int	pBlendShapeChannelIndex
	)		const

Search for all occurrences

Returns the number of shapes.

Parameters:

pBlendShapeIndex	The blend shape deformer index.
pBlendShapeChannelIndex	The blend shape channel index.

Returns:: The number of shapes that have been added to this blend shape channel of this blend shape deformer.

KFbxShape* GetShape	(	int	pBlendShapeIndex,
		int	pBlendShapeChannelIndex,
		int	pShapeIndex
	)

Search for all occurrences

Returns the shape found at the specified index on a blend shape channel of a blend shape deformer.

Parameters:

pBlendShapeIndex	The blend shape deformer index.
pBlendShapeChannelIndex	The blend shape channel index.
pShapeIndex	The specified shape index.

Returns:: Pointer to the shape (or NULL if pIndex is out of range). If pIndex is out of range, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxShape const* GetShape	(	int	pBlendShapeIndex,
		int	pBlendShapeChannelIndex,
		int	pShapeIndex
	)		const

Search for all occurrences

Returns the shape found at the specified index on a blend shape channel of a blend shape deformer.

Parameters:

pBlendShapeIndex	The blend shape deformer index.
pBlendShapeChannelIndex	The blend shape channel index.
pShapeIndex	The specified shape index.

Returns:: Pointer to the shape (or NULL if pIndex is out of range). If pIndex is out of range, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxAnimCurve* GetShapeChannel	(	int	pBlendShapeIndex,
		int	pBlendShapeChannelIndex,
		KFbxAnimLayer *	pLayer,
		bool	pCreateAsNeeded = `false`
	)

Search for all occurrences

Get the shape animation curve.

The shape channel is an animatable property with a value range from 0 to 100 (with 100 being full shape deformation). The default value is 0.

Parameters:

pBlendShapeIndex	The blend shape deformer index.
pBlendShapeChannelIndex	The blend shape channel index.
pCreateAsNeeded	If `true`, creates the animation curve if it is not already present.
pLayer	The animation layer from which we want to get the requested animation curve.

Returns:

Animation curve (or NULL if an error occurred). If an error occurs, KFbxGeometry::GetLastErrorID() returns one of the following:

eINDEX_OUT_OF_RANGE: Shape index is out of range.
eSHAPE_NO_CURVE_FOUND: Shape curve could not be found.

Remarks:: If pLayer is left at NULL, the method will use the first layer of the Animation stack.

KFbxXMatrix& GetPivot ( KFbxXMatrix & pXMatrix ) const

Search for all occurrences

Returns the pivot matrix.

Parameters:

pXMatrix Placeholder for the returned matrix.

Returns:: Reference to the passed argument.

void SetPivot ( KFbxXMatrix & pXMatrix )

Search for all occurrences

Sets the pivot matrix.

Parameters:

pXMatrix The transformation matrix that is assigned to the pivot matrix.

void ApplyPivot ( )

Search for all occurrences

Applies the pivot matrix to all vertices/normals of the geometry.

K_DEPRECATED void SetDefaultShape	(	int	pIndex,
		double	pPercent
	)

Search for all occurrences

Sets the default deformation for a specified shape.

The default shape property has a value range from 0 to 100 (with 100 being full shape deformation). The default value is 0.

Parameters:

pIndex	The shape index.
pPercent	Deformation percentage (on a scale ranging from 0 to 100).

Remarks:: This function has no effect if pIndex is out of range.

K_DEPRECATED void SetDefaultShape	(	char const *	pShapeName,
		double	pPercent
	)

Search for all occurrences

Sets the default deformation for a specified shape.

The default shape property has a value range from 0 to 100 (with 100 being full shape deformation). The default value is 0.

Parameters:

pShapeName	The shape name.
pPercent	Deformation percentage (on a scale ranging from 0 to 100).

Remarks:: This function has no effect if pShapeName is invalid.

K_DEPRECATED const double GetDefaultShape ( int pIndex ) const

Search for all occurrences

Returns the default deformation value for the specified shape.

The default shape property has a value range from 0 to 100 (with 100 being full shape deformation). The default value is 0.

Parameters:

pIndex The shape index.

Returns:: The deformation value for the specified shape, or 0 if pIndex is out of range.

K_DEPRECATED const double GetDefaultShape ( char const * pShapeName ) const

Search for all occurrences

Returns the default deformation value for the specified shape.

The default shape property has a value range from 0 to 100 (with 100 being full shape deformation). The default value is 0.

Parameters:

pShapeName The shape name.

Returns:: The deformation value for the specified shape, or 0 if pShapeName is invalid.

void SetDefaultShape	(	int	pBlendShapeIndex,
		int	pBlendShapeChannelIndex,
		double	pPercent
	)

Search for all occurrences

Sets the default deformation for a specified shape.

The default shape property has a value range from 0 to 100 (with 100 being full shape deformation). The default value is 0.

Parameters:

pBlendShapeIndex	The blend shape deformer index.
pBlendShapeChannelIndex	The blend shape channel index.
pPercent	Deformation percentage (on a scale ranging from 0 to 100).
