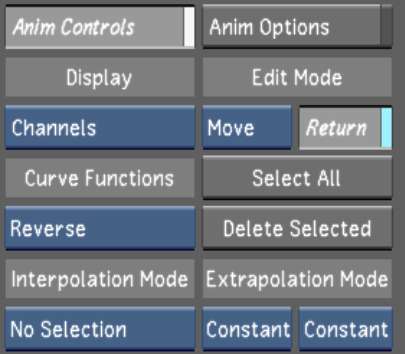

Use the Animation controls to modify channels. To display these controls, enable the Anim Controls button in the Animation editor or the Dissolve editor.
Display box Toggle between displaying the Animation editor in Channels view (Curve in previous versions of Lustre) or in Tracks view (Timeline in previous versions).
Edit Mode box Select how you want to modify keyframes:
| Select: | To: |
|---|---|
| Add (A) | Add a keyframe. |
| Move (M) | Move a keyframe. |
| Delete (D) | Delete a keyframe. |
| Break | Break a tangent. |
| Repair | Repair a broken tangent. |
Return button Modify a keyframe and return to Move mode.
Curve Functions box Modify the current channel by reversing the order of keyframes in time (Reverse), or inverting the value of the keyframes (Invert).
Select All button selects all keyframes on the current channel.
Delete Selected button Deletes selected keyframes from the current channel.
Interpolation Mode box Select how the curve between keyframes is shaped: as a Constant, Linear, Hermite or Bezier curve; Mixed is displayed only when a selection contains keyframes with different interpolations; Natural is available only when importing timelines with dissolves from Wiretap server.
Extrapolation Mode box Select the shape of the curve before and after the first and last keyframes.
