Output Node




Use the Output node to output clips to the Desktop, a clip library, or a remote framestore. The Output node accepts video input from clips with video tracks and audio input from clips with audio tracks.

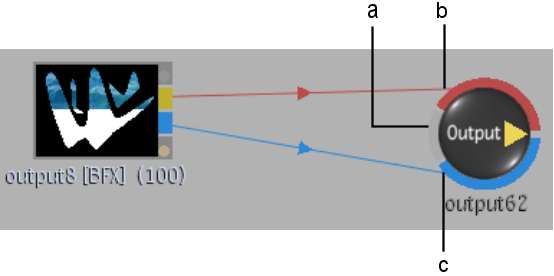

You can process both RGB-A clips and clips containing stereo tracks with an Output node. In RGB-A processing mode, the Output node accepts a front input and a matte input. The front is output as the RGB result and the matte is output as the alpha result.

Show small imageShow large image

(a) Audio input tab (b) RGB (front) input tab (c) Matte input tab 

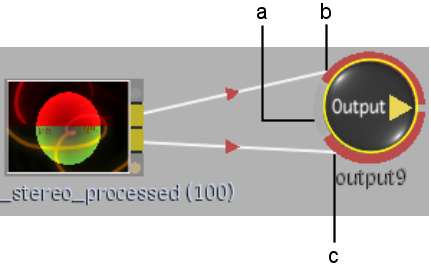

In Stereo processing mode, the Output node accepts a left eye input and a right eye input. The left eye and right eye are output on two layers of the same stereo track.

Show small imageShow large image

(a) Audio input tab (b) Left eye input tab (c) Right eye input tab

You select the processing mode from the Output node’s menu settings. See Processing Batch Results.
