Viewing Media




As you work with media, you can set properties for either the front, matte, or back clip. To view a clip exclusively, you can select it from the View box. View attributes are set per media.

Show small imageShow large image

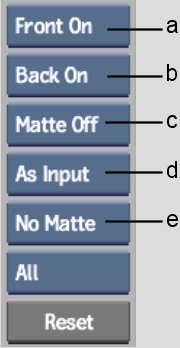

(a) Front Clip box  (b) Back Clip box  (c) Matte Clip box  (d) Media Rendering box  (e) Matte Output box  

Media Rendering boxSets the rendering for each media. Select Interlaced, Progressive, or As Input (to render using the mode that corresponds to the source clip).

Matte Output boxDetermines if a matte will be output for a selected media or for the entire scene. See Processing a Matte.

To enable a clip, select On from the applicable Clip box. To disable a clip, select Off. You may want to disable a clip in the following situations:

To edit a front clip's visibility:

  1. Select media from the Media list.
  2. From the Front Clip box, select one of the following options.
    Select: To:
    Front On Display the front clip for the selected media.
    Front Off Hide the front clip for the selected media.
    Front Lock Lock the selected front clip at the current frame in the timebar. See Locking the Front or Back Clip.

To edit a back clip's visibility:

  1. From the Back Clip box, select one of the following options.
    Select: To:
    Back On Display the back clip.
    Back Off Hide the back clip.
    Back Lock Lock the back clip at the current frame in the timebar. See Locking the Front or Back Clip.

To edit a matte clip's visibility:

  1. Select media from the Media list.
  2. From a Matte Clip box, select one of the following options.
    Select: To:
    Matte On Display the matte clip for the selected media.
    Matte Off Hide the matte clip for the selected media.
    Matte Invert Invert a matte. Black areas will be made white, and white areas will become black.
    TipTo invert multiple matte clips, Ctrl-click the matte media and select Invert in the Matte Clip box.

To display a clip in the image window:

  1. Select the corresponding view from the View box.

    Show small imageShow large image

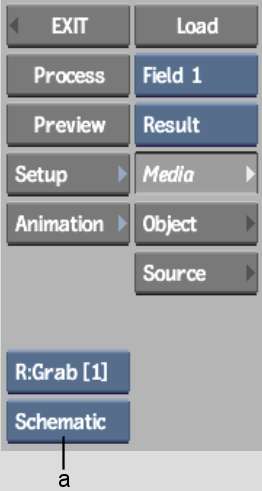

    (a) View box  

    Select: To display:
    Media Front The front clip.
    Media Matte The matte clip.
    Media Back The back clip.
    Result The overall effect.
    NoteThe selected clip is also displayed as an Image node in the Node bin. You can also display media clips by selecting Medialist from the View box, or by touching the swipe bar on the left of the Media menu.
