Creating Coloured Frames




Use the Coloured Frame command to generate a clip that contains one or more identical frames of a solid colour, a gradient of two or four colours, or SMPTE or PAL colour bars at 75% or 100% luminance.

To create coloured frames:

  1. Click Coloured Frame in the Processing menu.

    The Coloured Frame menu appears.

    Show small imageShow large image

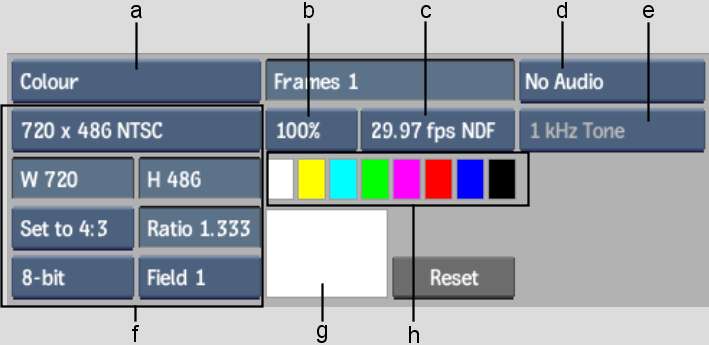

    (a) Frame Mode box  (b) Luminance box  (c) Frame Code Mode box (d) Track box (e) Frequency box (f) Resolution settings (g) Current colour pot (h) Colour palettes 

  2. Select the type of frame to generate from the Frame Mode box.
    Select: To generate frames of:
    Colour A solid colour.
    Noise Video static noise.
    Colour Noise Colour video static noise.
    SMPTE Bars SMPTE standard colour bars.
    PAL Bars PAL standard colour bars.
    Gradient A two- or four- colour gradient.
  3. Specify the number of frames that you want to generate in the Frame number field.
  4. From the Luminance box, select 75% or 100% luminance (not available for Gradient frames).
  5. From the Frame Code Mode box, select the framerate and drop frame mode for your colour source clip.
  6. To generate audio with the clip, select the number of audio tracks from the Track box and then select a frequency from the Frequency box.
    NoteSelecting Silence in the Frequency box creates audio tracks with a flat waveform.
  7. If the Frame Mode is set to Colour, set the colour to be used for the frames in the Current Colour pot. Perform one of the following:
    • Click one of the colour pots to transfer that colour into the Current Colour pot.
    • Click the Current Colour pot to create the current colour.

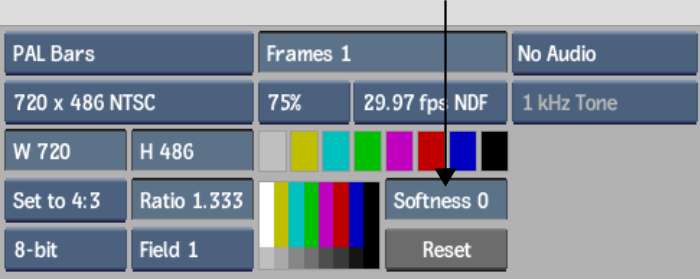

  8. If the Source Type is set to SMPTE or PAL Bars, enter a value in the Softness field to display the softness between the colour bars.

    Show small imageShow large image

  9. If the Source Type is set to Gradient, use the Gradient tools to create a two- or four- colour gradient. See the following procedure.
  10. Optional: Change the resolution. By default, the result clip has the same resolution as the project default resolution. To specify an alternative resolution, use the Resolution settings.
  11. Select the destination reel.

    The generated clip appears on the destination reel.

To create a gradient clip:

  1. From the Source Type box, select Gradient.
  2. From the Gradient Mode box, select whether you want to create a two-colour or four-colour gradient.

    Show small imageShow large image

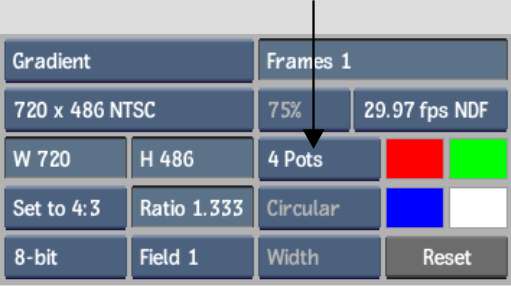

  3. If you selected 4 Pots in the Gradient Mode box, use the four colour pots to select the colours representing the four corners of the image.
  4. If you selected 2 Pots in the Gradient Mode box, use the two colour pots to select the gradient colours and then set a pattern of Horizontal, Vertical, or Circular in the Gradient Pattern box.

    Show small imageShow large image

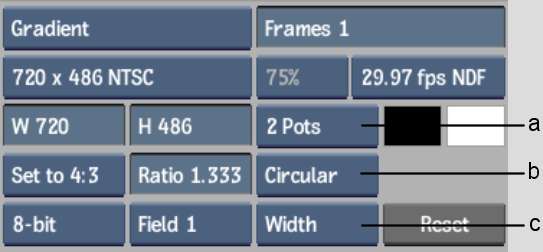

    (a) Gradient Mode box (b) Gradient Pattern box (c) Circular Mode box  

  5. If you selected Circular in the Gradient Pattern box, you can set how the gradient is drawn in the Circular Mode box. The gradient is drawn from the centre of the image using the maximum width, height, or diagonal length, depending on your choice.
  6. Select the destination reel for the generated gradient clip.
