Adding a DVE Layer Object




You can add DVE Layer Objects automatically when you open Action during a session, or when adding new media, by selecting Auto DVE in the Auto Image option box in the Action Setup menu. You can also add a DVE Layer Object manually from the Action node bin.

To manually add a DVE Layer Object:

  1. In the Media list, select the media column containing the front and matte that you want to add to the scene. You can also select multiple front and matte columns in the Media list.
  2. Do one of the following:
    • Drag the DVE Object node from the node bar and place it in the schematic.
    • Double-click the DVE Object node. The node appears next to the last added object. You do not need to be in Schematic view to add a node in this manner.

    The DVE Layer Object is added to the scene as a single grouped node, and the Object tabs are populated with all of the objects that comprise the DVE Layer Object (except for Front and Matte sources). If you selected multiple media columns in the Media list, a DVE Layer Object node is added for each.

    For information on the specific controls in the Axis menu, see Manipulating an Object's Axis. For details on the specific controls of the Image and Shadow menus, see Modifying Surfaces and Adding Shadows.

    Show small imageShow large image

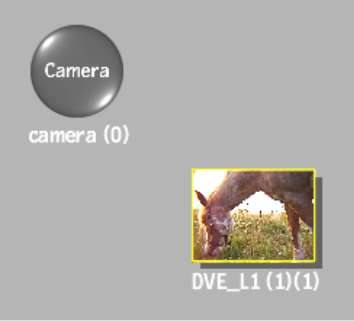

    The newly created DVE Layer Object is named according to the media it is created from. For example, DVE_L1 represents a DVE Layer Object created from Layer 1.

    NoteYou can add multiple DVE Layer Objects to the Action schematic, but only one per media.
