Assembling a Process Tree




Use Batch to assemble a series of tasks using nodes. Each node represents a specific Flame function. You connect clips with nodes and use the result of one node as the source for the next node. As you assemble this arrangement in the Batch schematic, you are building a process tree that processes as many output clips as you want. Intermediate clips can be processed as well.

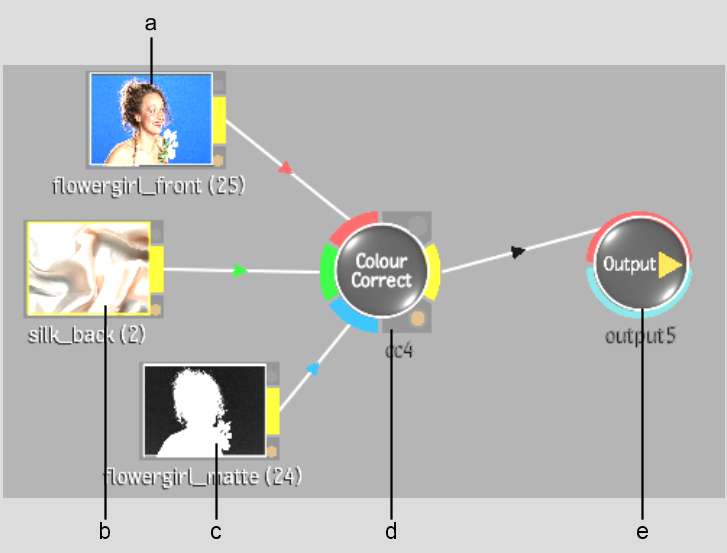

A process tree begins with a clip, contains at least one node, and ends with an Output, BFX Output, or Export node. The following example shows a simple process tree that performs a colour correction using a front, back, and matte clip.

Show small imageShow large image

(a) Front clip  (b) Back clip  (c) Matte clip  (d) Colour Correct node  (e) Output node  

To build a process tree:

  1. In the Batch menu, select BatchSchm from the View box.

    Show small imageShow large image

  2. Add the clips and nodes to the schematic. See Adding Clips to the Schematic, and Adding Nodes to the Schematic.
  3. Connect the clips and nodes in the required sequence for your effect. See Connecting Clips and Nodes, and Working with Multiple Connections.
  4. Modify the clips and nodes, as needed, to adjust effect parameters, trim segments, apply LUTs, and adjust audio, for example. See Modifying Clips in Batch.
  5. Connect a node to a BFX Output, Output, or Export node.

    Before you can process, a process tree must end with either a BFX Output, Output, or Export node. Batch uses these nodes to process the result of the process tree to the specified destination in the Queue Manager. See BFX Output Node, Output Node, Export Node, and Outputting and Exporting Batch Results.

  6. Preview your process tree, then click Process.

    The final clip is stored on the Desktop or in a library. See Previewing Results and Outputting and Exporting Batch Results.
