HDCAM SR Double-Speed and Stereo Tape Capture




Using an HDCAM SR, you can capture material from specially formatted double-speed and stereoscopic tapes.

Double-speed tapes allows you to capture material twice as fast. Stereoscopic tapes essentially stores in an interlaced timing two progressive clips; a 60i (50i) “clip” contains two 30p(25p) clips.

This feature does have the follwoing limitations:

To capture material recorded at double-speed:

  1. Ensure that the HDCAM SR is connected to the AJA card using a dual-link.
  2. Set the HDCAM SR VTR to DBL 422.
  3. From the Device Name box, select the HDCAM SR VTR.

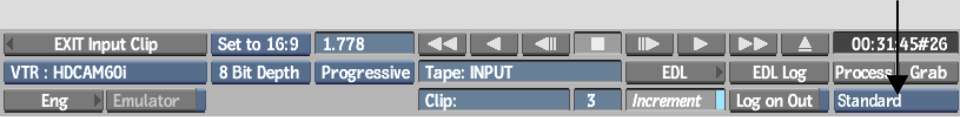

  4. From the Tape Type box, select 2x-DOUBLE.

    Show small imageShow large image

    In the Input Clip menu, the clip is displayed with a strong yellow bias. This is normal; the captured clip will not have this yellow bias.

  5. Capture the clip. See Capturing Single Clips.

To capture material recorded on stereoscopic tapes:

  1. Ensure that the HDCAM SR is connected to the AJA card using a dual-link.
  2. Set the HDCAM SR VTR to 2X 422.
  3. From the Device Name box, select the HDCAM SR VTR.
  4. From the Tape Type box, select 2x-STEREO.

    Show small imageShow large image

    In the Input Clip menu, the clip is displayed with a strong yellow bias. This is normal; the captured clip will not have this yellow bias.

  5. Capture the clip. See Capturing Single Clips.

    The stereoscopic material is captured as two clips and named according to the Clip Name field. But to differentiate the clips, one has the A suffix, and the other has the B suffix.
