Selecting Tracks




You can select one track at a time, multiple tracks, or all tracks. Selected tracks are yellow and their associated Selector icon appears recessed.

To select a track:

  1. Do one of the following:
    • If the track has only one layer, click the Selector icon.
    • If the track has multiple layers, click the Collapse arrow and then click the Selector icon, or Ctrl-click each layer's icon.

    Show small imageShow large image

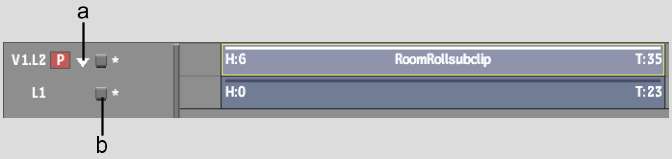

    (a) Collapse arrow  (b) Selector icon for V1.L1  

To select multiple tracks:

  1. Do one of the following:
    • To select a range of tracks, Shift-click the Selector icon of the first and last tracks.
    • To select individual tracks, Ctrl-click the Selector icon of each layer.

    Show small imageShow large image

    (a) Selector icon for V2.L1  

To select all tracks:

  1. Click the element selection hot spot.

    Show small imageShow large image

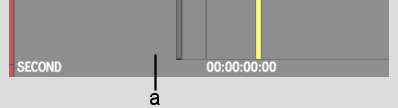

    (a) Element selection hot spot  

To deselect tracks:

  1. Do any of the following:
    • Alt-click the element selection hot spot.
    • Click in the empty space of the timeline to the right of the slider bar.

    Show small imageShow large image

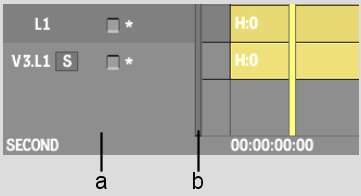

    (a) Element selection hot spot  (b) Slider bar
