Identifying the Status of Timeline Elements




When you apply soft effects to timeline elements, colour bars appear at the top of the elements to show the process and lock status.

As you create timeline effects, you may need to process if the effect is complex or involves many layers.

NoteComplex vertical edits that involve many layers or soft effects may require processing for real-time preview. If this occurs, black frames might be played back, or, in the Player, frames might be dropped in order to maintain sync.

Show small imageShow large image

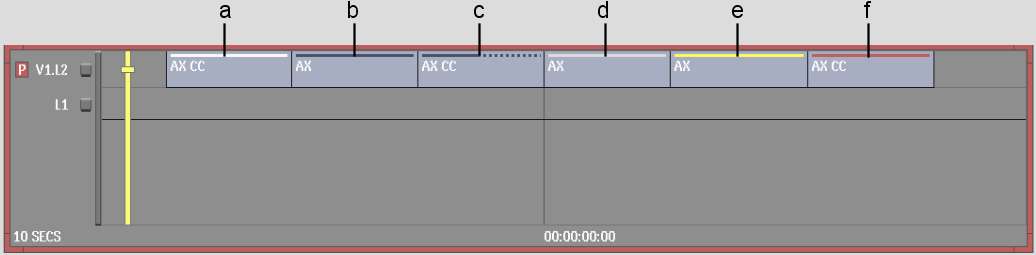

(a) Unprocessed element (b) Processed element (c) Partially processed element (d) Locked element (e) Locked element with invalidated media (f) Compacted element 

Colour of Bar Description
Black Element is processed.
Solid and dotted black Element is partially processed. Dotted line indicates how much of the element is unprocessed.
White Element requires processing.
Grey Element is processed and locked.
Dotted grey Element is partially processed and locked.
Yellow A locked effect with invalidated media.
Dotted yellow Modified media under a partially processed locked element.
Red Element contains a compact soft effect.
Orange Element is proxy processed.
Dotted orange A partially processed proxy.
Dotted black and white Element is sent to Burn.
Black and white checkered Missing information; that is, processing submitted to Burn is incomplete.
