Color Tab




WiretapCentral supports most color options available in RED applications, such as RED Alert!.

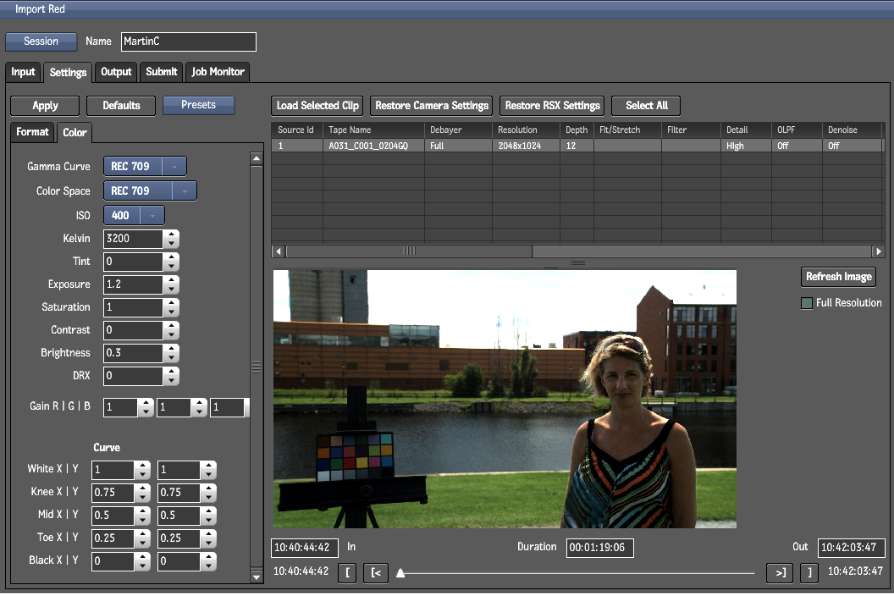

The Color Tab displays the settings for the clip metadata, as set in the camera. Alter these settings carefully, since overiding some values may produce unexpected results.

Load the RSX look created in RED Alert! by clicking Restore RSX Settings. The RSX file of a clip must reside in the same folder as the R3D file of that clip; this is the default behavior in RED Alert!.

NoteThe Color tab also contains settings for RGB Gain, as well as Color curve settings. We recommend that you do not change the default settings unless you have prior experience with color management.

Show small imageShow large image

Gamma Curve Displays the value of the output gamma curve that is applied to the clips.

Color Space Displays the value of the native color space of the images, as set in the camera.

ISO Displays the value of the linear gain operation. Red images are always shot at 320 ISO.

Kelvin Displays the perceived color temperature of the image.

Exposure Displays the exposure increments, which are equivalent to f-stops.

DRX Displays the setting for Dynamix Range Extension, which sets how much pixel data is copied from non-saturated channels into saturated channels.
