You can create a movie
of one shot you set up or of each shot. You can also create one
movie containing all shots in the order they appear in the Shots
interface.
Create a movie of one or all shots
- Set up the shot (or sequence of
shots) you want to save as a movie.
Set up shots
- Select File > Save Movie
As.

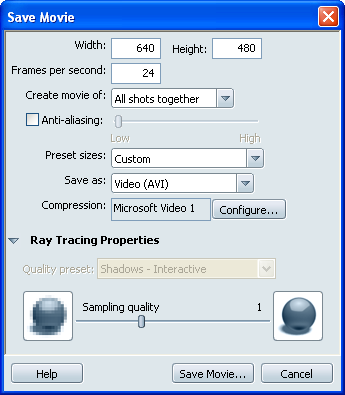

The Save As Movie window
appears.
- Specify the movie properties (width,
height, frames per second), or leave them as they appear (the default).
- From the Create Movie of pull-down
menu, select which shot you want to include in the movie. You can
select one of the shots in the scene to make its movie, or:
- All shots together—creates
one movie containing all shots in the order they appear in the Shots
interface.
- All shots separately—creates
multiple movies, one for each shot shown in the Shots interface.
- You can include anti-aliasing for a smoother
look in Hardware rendering. Click the Anti-aliasing button,
then move the slider towards Low or High depending
on your needs.
NoteThe Hardware anti-aliasing
settings specified in Options > Performance
and Quality are ignored when saving the movie.
Choose
a Preset
size for playback at monitor or video resolutions. Set
the Save as to be either a compressed
video (AVI with Compression set below) or a
series of images in either TIFF or JPEG format.
NoteYour available video
codecs for saving as a single AVI movie are determined by your global
system settings.
- Click Save movie.
The Save Movie File window
appears.
- Browse to the folder where you want to
save the movie.
- Type the movie’s name into the File
Name field.
- Click Save.
Specify a Quality Range and Sampling
for Ray Tracing output
For Ray Tracing image
output, the Quality preset and Sampling quality can be set independent
of the Interactive Ray Tracing settings used to display the image
on screen. By default, the current Quality preset for the Interactive
Ray Tracing will be used, but the Sampling quality will default
to 1.
To save a movie using
specific Ray Tracing settings:
- Enable Ray Tracing using View
> Ray Tracing, or by pressing R.
NoteRay Tracing can be
enabled or disabled for the current Save Movie by pressing the R key while
the Save Movie As dialog box is open.
- Choose a Quality preset (defines
the overall quality and ray tracing effects used in the rendering)
from the drop-down menu of presets if the current one is not desired.
- Set the Sampling quality slider
(controls the smoothness of the pixels in the final image) to the
desired amount.
- Press Save Movie... to
initiate the offline rendering. A browser appears with the filename
and location, then a progress bar indicates the rendering progress.
NoteWhile an offline
Ray Tracing rendering is progressing, the interactive Ray Tracing
is disabled. Input for navigating the scene will be ignored until
the rendering is complete.
The rendering can be
cancelled at any time during its progress.
