Expand and select objects in the Organizer
- Select Scene
> Organizer (or press the O key).
The Organizer window
appears.

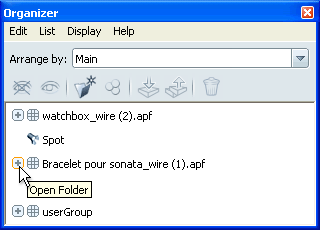

- Click on the plus sign beside an item
to see its expanded objects.

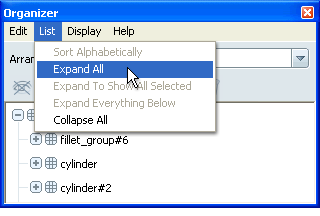

NoteTo expand all objects
in the window, select List > Expand All.
- To select an object, click on it.
In the Main view, selected
objects appear orange. Their parent objects appear blue and child
objects appear light orange. (Child objects appear orange in locked
views.)
NoteTo select multiple
objects, hold down the Shift key (for consecutive
objects), or the Ctrl key (for non-consecutive
objects). To remove a selected object from a group of selected objects,
click on the object while holding down the Ctrl key.
View and change the state
of objects
Visible objects
are shown solid black:
|

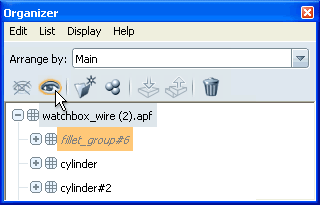

To make
a hidden object visible, select it and click the eye icon.
|
Hidden objects are shown grayed
out:To remove hidden objects
from the Organizer, toggle off Hidden Items from
its Display menu (select this menu
item again to bring them back).
|
To hide
a visible object, select it and click the crossed-out eye icon.
|
Deleted objects are shown crossed out
in red:To remove deleted objects
from the Organizer, toggle off Deleted Items from
its Display menu (select this menu
item again to bring them back).
|
To delete
an object, select it and click on the trash can icon. (To undelete
a deleted item, select Undelete from its right mouse
button menu.)
|
Objects maintaining their original position (from
import) are shown with a grid icon(This icon is shown in the
Main view only.)
|
To transform an object, double-click this icon to use
the Transform Properties window.
|
Objects
with transformations (after import)
are shown with a triangular icon:(This icon is shown in the
Main view only.)
|
To view the transforms, double-click this icon to see
them in the Transform Properties window.
|
Hide or display hidden objects
- To hide a
visible object, select it in the Organizer and click the crossed-out
eye icon.
- To make the object visible again, select
it and click the eye icon.

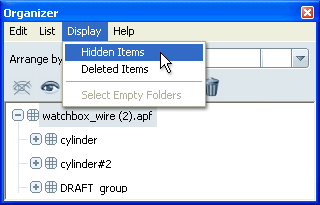

- To remove all hidden objects from the
Organizer, toggle off Display > Hidden
Items.
- To see the hidden objects again, select Display
> Hidden Items again.
Expand or collapse entries
The
List menu lets you expand or collapse all list items, or expand
selected items.
