What are highlights?
When a bright light (sunlight,
spotlight, and so on) reflects off a surface, a specular highlight
results. In another words, highlights are the hotspots where light
is reflected off an object.

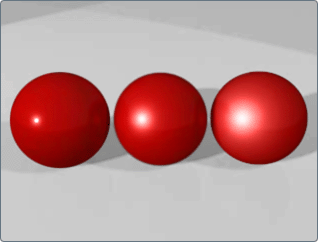

In the following image,
the highlight value was increased for each object from left to right.

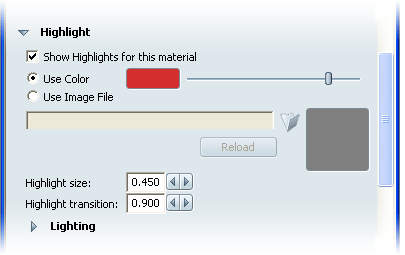

Highlight parameters
TipTo view the parameters
for a particular material, select an object with that material and
press Ctrl+M.
- Show Highlights for this material
-
Check the Show
Highlights for this material box to turn on
highlights.
- Use color
-
Adjusts the color of
the highlights. For details on how to use these controls, see
Change colors.
- Use image file
-
Applies
a specular map to control how highlights appear on an object. For
details on how to use these controls, see
Apply image maps.
- Highlight size
-
Controls the size of
shiny highlights or hotspots on the surface. (This value is sometimes
called eccentricity.) Enter any numeric
value with unit intervals of 0.1.
TipFor surfaces to be
perceived as shiny, the highlight size should be small and the highlight
transition value should be high.
TipFor surfaces to be
perceived as dull, the specular highlight size should be large and
the highlight transition value should be small.
- Highlight transition
-
Modulates
or scales the intensity of the specular highlight. (This value is
also called specular rolloff.) Enter any numeric
value with unit intervals of 0.1.
- Environment lighting override
-
Determines how specular
highlights interact with the environment light and/or image-based
lighting. For details on how to use these controls, see
Apply environment lighting overrides.
