Influence objects





You can create an object and use it to influence the shape of smooth skin. The object, called an influence object, acts like a surgical implant against which the skin deforms. For example, you can create a sphere and use it to simulate a muscle or bone that bulges as you pose the character in certain positions. You can also use an influence object to smooth deformation and maintain volume in regions that collapse while bending.

In the next steps, you’ll use a sphere as an influence object to simulate an elbow jutting out as Jackie’s arm bends. To use an influence object, the skeleton must be in the bind pose—the original pose at which the skin was bound to Jackie.

To return the skeleton to the bind pose

  1. Click the Select Tool and cancel the selection of Jackie.
  2. Turn off Modify > Evaluate Nodes > IK Solvers.

    After you use an IK handle to pose a character, you must do this step before you can return the skeleton to the bind (T-stance) pose.

  3. Select back_root, the root of the skeleton.
  4. Select Skin > Go To Bind Pose.
  5. Select the ikHandleLeftArm in the Hypergraph. Use the Move Tool to move the handle manipulator slightly in any direction. When you release the mouse, note that the arm does not move and that the IK handle manipulator snaps back to the desired position at the end of the joint chain. Repeat this step for any other IK handles you posed previously.
  6. Turn on Modify > Evaluate Nodes > IK Solvers.

    You must do this step to enable the IK solvers so you can manipulate IK handles in the scene again.

To position a sphere to be used as an influence object

  1. -click Jackie’s surface (anywhere but on the skeleton) and select Actions > Template from the marking menu.

    By making Jackie a template, you won’t accidentally select Jackie in subsequent steps.

  2. Create a sphere (select Create > Polygon Primitives > Sphere) and name it elbow_influence.
  3. Scale the sphere to be slightly smaller than any of Jackie’s joints (see illustration below).

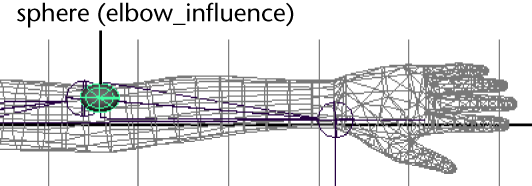

  4. Move the sphere so that its surface is positioned where the elbow would jut out, but still within the skin. You can optionally reshape the sphere’s curvature to resemble the tip of an elbow jutting out from a bent arm. For example, you can scale the sphere in one dimension to squash its shape or you can move individual vertices. A top view of the sphere’s shape and position follows:

    The exact position and scale of the sphere is unimportant. You can make slight position and scale adjustments later to enhance the deformations that result from its use.

To make the sphere an influence object

  1. In the Hypergraph, select Jackie and Shift-select elbow_influence.
  2. Select Skin > Edit Smooth Skin > Add Influence >. In the Add Influence Options, select Edit > Reset Settings, and then click the Add button.

    Maya completes the operation within a few moments. To ensure the influence object stays in the correct position at the elbow, you will parent it to the left_shoulder joint.

  3. In the Hypergraph, Shift-select elbow_influence, elbow_influenceBase, and left_shoulder joint, in that order.

    The order of selection is important. The parent object should be selected last.

  4. Press p to parent the elbow nodes under the left_shoulder joint.

    The elbow_influence nodes appear in the skeleton hierarchy below the left_shoulder joint.

    The elbow_influenceBase is known as a base object. It stores vertex position information for the influence object. The reason for parenting the base object to the left_shoulder joint is so that the influence object’s vertices stay in the correct position at the elbow whenever the elbow moves to a new position. Other than this step, you do not work with the base object.

  5. Right-click Jackie and select Actions > Untemplate. It is easier to see subsequent skin deformations when Jackie is displayed with smooth shading rather than as a template.
  6. From the menus at the top of the top view, turn off Show > Joints to avoid having the joints obstruct your view of the skin.

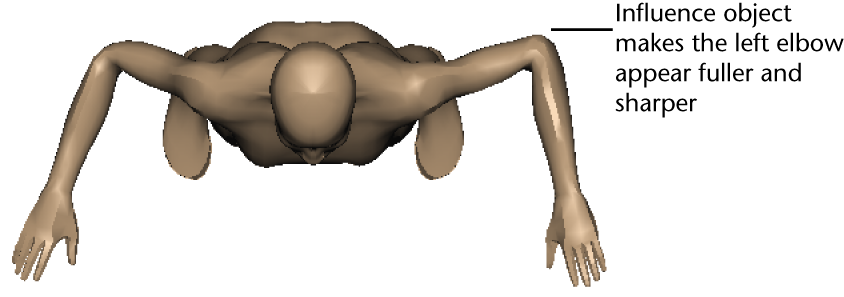

  7. Use each arm’s IK handle (ikHandleLeftArm and ikHandleRightArm) to pose the arms in the following position.

    The left elbow looks more natural than the right elbow. To tune the elbow’s deformation during bending, change the position, scale, and rotation of elbow_influence.

    Do not be concerned if the influence object pokes through the skin. It won’t be displayed when you render the animation.
