Adding Motion Streak





You can set the Motion Streak attribute to optimize the motion of the nParticles during the pouring sequence of the animation. Motion Streak is useful for creating a motion blur type of effect, and for shaping the flow of liquids.

To set Motion Streak

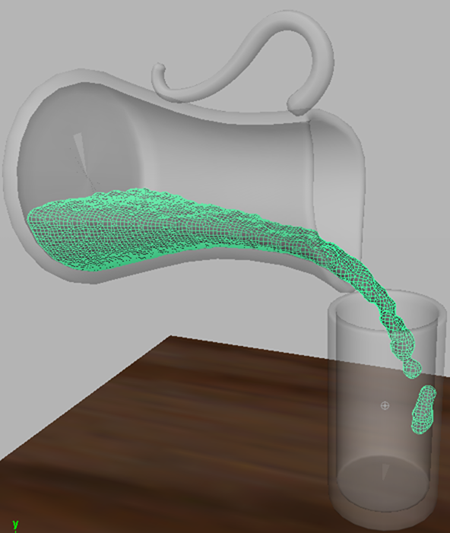

  1. Go to frame 111, then dolly and tumble the scene so that you have a close-up view of the water nParticles pouring into the glass.

    At this frame, notice that the droplet mesh pouring into the glass looks too spherical. It does not resemble the continuous flowing behavior of water poured into a glass.

    To make the mesh a continuous flowing object, you can adjust the Motion Streak attribute.

  2. In the Attribute Editor, click the nParticle_WaterShape tab.

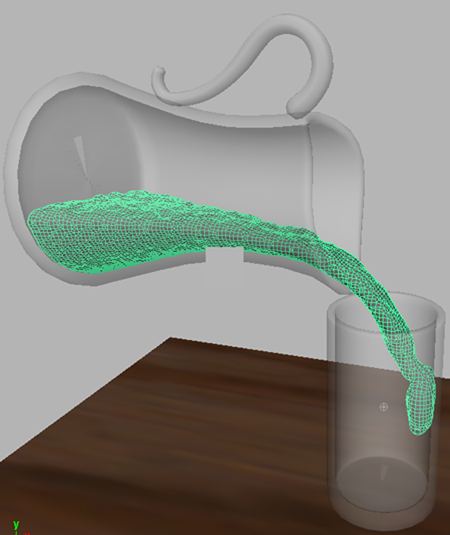

  3. In the Output Mesh section, set Motion Streak to 0.50.

    Maya updates the output mesh with the new setting. To further improve the quality of the mesh, you can perform a polygon smooth operation.

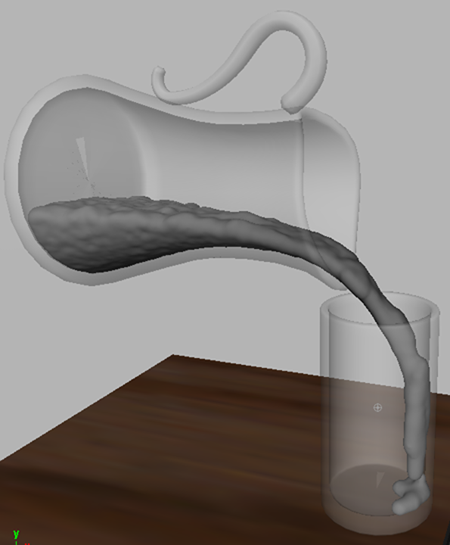

  4. To smooth the mesh, select it, and from the Polygons menu set, select Mesh > Smooth.

    The mesh is noticeably smoother and looks more like a liquid. Be aware that smoothing a mesh adds divisions to the polygons on the mesh, making it denser, which increases simulation time.

    In the next section, you will assign material shaders to the pitcher, glass, and water meshes and render frames of the simulation using mental ray for Maya renderer.
