MFnDistanceManip Class Reference
[OpenMayaUI - API module for user interface, FunctionSet classes]

#include <MFnDistanceManip.h>

Inheritance diagram for MFnDistanceManip:

[legend]

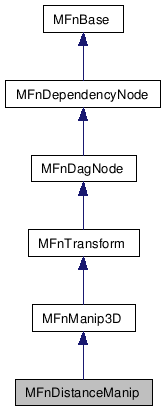

Collaboration diagram for MFnDistanceManip:

[legend]

List of all members.

---

Detailed Description

DistanceManip function set.

The DistanceManip allows the user to manipulate a point that is constrained to move along a line. This manipulator generates a single floating point value. Scaling factors can be used to determine how int the manipulator appears when it is drawn.

Examples:

footPrintManip.cpp, moveManip.cpp, and swissArmyManip.cpp.

Public Member Functions
virtual MFn::Type	type () const
	Function set type.
virtual	~MFnDistanceManip ()
	Destructor.
	MFnDistanceManip ()
	Default constructor.
	MFnDistanceManip (MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
	MFnDistanceManip (const MDagPath &object, MStatus *ret=NULL)
	Constructor.
MObject	create (MStatus *ReturnStatus=NULL)
MObject	create (const MString &manipName, const MString &distanceName, MStatus *ReturnStatus=NULL)
MStatus	connectToDistancePlug (MPlug &distancePlug)
MStatus	setStartPoint (const MPoint &point)
MStatus	setDirection (const MVector &vector)
MStatus	setDrawStart (bool state)
MStatus	setDrawLine (bool state)
MStatus	setScalingFactor (double scalingFactor)
bool	isDrawStartOn (MStatus *ReturnStatus=NULL) const
bool	isDrawLineOn (MStatus *ReturnStatus=NULL) const
double	scalingFactor (MStatus *ReturnStatus=NULL) const
unsigned int	distanceIndex (MStatus *ReturnStatus=NULL) const
unsigned int	directionIndex (MStatus *ReturnStatus=NULL) const
unsigned int	startPointIndex (MStatus *ReturnStatus=NULL) const
unsigned int	currentPointIndex (MStatus *ReturnStatus=NULL) const
	MFnDistanceManip (const MObject &object, MStatus *ret=NULL)
	Constructor.
Protected Member Functions
virtual const char *	className () const
	Class name.

---

Constructor & Destructor Documentation

MFnDistanceManip::~MFnDistanceManip

(

)

[virtual]

Destructor.

Class destructor.

MFnDistanceManip::MFnDistanceManip	(	MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnDistanceManip::MFnDistanceManip	(	const MDagPath &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:

[in]	object	The const MDagPath to attach the function set to
[out]	ReturnStatus	The return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnDistanceManip::MFnDistanceManip	(	const MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

---

Member Function Documentation

MFn::Type MFnDistanceManip::type

(

)

const [virtual]

Function set type.

Return the class type : MFn::kDistanceManip

Reimplemented from MFnManip3D.

const char * MFnDistanceManip::className

(

)

const [protected, virtual]

Class name.

Return the class name : "MFnDistanceManip"

Reimplemented from MFnManip3D.

MObject MFnDistanceManip::create

(

MStatus *

ReturnStatus = NULL

)

Creates a new DistanceManip. This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite DistanceManip.

The name that appears in the feedback line is "Distance"

Parameters:

[out]

ReturnStatus

return status

Returns:

Newly created DistanceManip

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MObject MFnDistanceManip::create	(	const MString &	manipName,
		const MString &	distanceName,
		MStatus *	ReturnStatus = NULL
	)

Creates a new DistanceManip. This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite DistanceManip.

The name that appears in the feedback line is specified by the distanceName argument.

Parameters:

[in]	manipName	Name of the manip for UI purposes.
[in]	distanceName	Label for the distance value which appears in the feedback line.
[out]	ReturnStatus	Status code.

Returns:

Newly created DistanceManip.

Status Codes:

• MS::kSuccess Operation successful.
• MS::kFailure Operation failed.

Reimplemented from MFnDependencyNode.

MStatus MFnDistanceManip::connectToDistancePlug

(

MPlug &

distancePlug

)

Connect to the distance plug. The data type corresponding to the distancePlug is a double. (Note that MFnUnitAttribute::kDistance is used to specify a distance attribute.)

Parameters:

[in]

distancePlug

the distance plug

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Examples:

swissArmyManip.cpp.

MStatus MFnDistanceManip::setStartPoint

(

const MPoint &

startPoint

)

Sets the start point of the DistanceManip.

Parameters:

[in]

startPoint

the start point of the DistanceManip

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnDistanceManip::setDirection

(

const MVector &

direction

)

Sets the direction of the DistanceManip.

Parameters:

[in]

direction

the direction of the DistanceManip

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnDistanceManip::setDrawStart

(

bool

state

)

Sets whether or not to draw the start of the DistanceManip. The start of the DistanceManip is indicated by a grey dot. By default the start is not drawn.

Parameters:

[in]

state

whether or not the start should be drawn

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnDistanceManip::setDrawLine

(

bool

state

)

Sets whether or not to draw a line from the start to the end of the DistanceManip. By default the line is drawn.

Parameters:

[in]

state

whether or not the line should be drawn

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnDistanceManip::setScalingFactor

(

double

scalingFactor

)

Sets the scaling factor. The scaling factor is used to determine how int the DistanceManip appears when it is drawn. The default scaling factor is 1.0.

Parameters:

[in]

scalingFactor

the scaling factor

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

bool MFnDistanceManip::isDrawStartOn

(

MStatus *

ReturnStatus = NULL

)

const

Returns whether or not the start of the DistanceManip is being drawn. By default the start is not drawn.

Parameters:

[out]

ReturnStatus

return status

Returns:

• true the start of the DistanceManip is being drawn
• false the start of the DistanceManip is not being drawn

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

bool MFnDistanceManip::isDrawLineOn

(

MStatus *

ReturnStatus = NULL

)

const

Returns whether or not a line is being drawn from the start to the end of the DistanceManip. By default the line is drawn.

Parameters:

[out]

ReturnStatus

return status

Returns:

• true the line of the DistanceManip is being drawn
• false the line of the DistanceManip is not being drawn

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

double MFnDistanceManip::scalingFactor

(

MStatus *

ReturnStatus = NULL

)

const

Returns the scaling factor. The scaling factor is used to determine how int the DistanceManip appears when it is drawn.

Parameters:

[out]

ReturnStatus

return status

Returns:

Scaling factor

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnDistanceManip::distanceIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the distance. The data type corresponding to this index is a double.

Parameters:

[out]

ReturnStatus

return status

Returns:

Distance index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnDistanceManip::directionIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the direction. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:

[out]

ReturnStatus

return status

Returns:

Direction index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnDistanceManip::startPointIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the start point of the DistanceManip. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:

[out]

ReturnStatus

return status

Returns:

Start point index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Examples:

swissArmyManip.cpp.

unsigned int MFnDistanceManip::currentPointIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the current point of the DistanceManip. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:

[out]

ReturnStatus

return status

Returns:

Current point index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed
