Script editor




In main menu bar:Window > General Editors > Script Editor

In scene view: Panels > Panel > Script Editor

The Script editor lets you type in single or multi-line scripts in either MEL or Python and see their output in the history pane.

Related topics

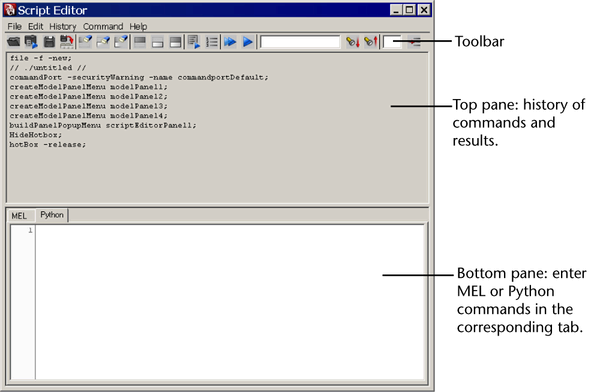

Panes

The top pane shows the history of commands and their results.

Type MEL or Python commands and scripts in either the MEL or Python tab in the bottom pane.

To execute the script in the bottom pane, do one of the following:

Toolbar

You can access most Script editor commands directly from this toolbar.

Load script.

Source script.

Save script.

Save script to Shelf.

Clear history.

Clear input.

Clear all.

Show history.

Show input.

Show both.

Echo all commands.

Show line numbers.

Execute all.

Execute: executes selected text.

Search down: searches for the text specified.

Search up: searches for the text specified.

Go: enter the line number in the text box and click this icon.

Menus

File

Load script

Loads the contents of a text file into the Script editor.

Source script

Executes the contents of a text file.

MEL does not allow you to forward reference locally scoped procedures. Locally scoped procedure definitions must appear before they are called. For example, in a file called noForwardRef.mel, define the local procedures before they are referenced.

proc myLocalProc() { print "In myLocalProc()\n" ; } proc anotherLocalProc() { print "In anotherLocalProc()\n" ; myLocalProc; } global proc noForwardRef() { print "Calling anotherLocalProc()\n" ; anotherLocalProc; }

If you change a script after sourcing it, the change is not automatically picked up by Maya. You need to re-run the script with File > Source Script.

Save script

Saves the selected text to a text file.

Save script to shelf

Adds a button to the current shelf which executes the selected text.

Edit

The edit menu includes standard editing commands and their associated hotkeys: Undo, Redo, Cut, Copy, Paste, and Select All, as well as the following commands:

Go to line

Goes to the specified line number.

Search and replace

Opens a search dialog where you can search for a string and replace it with a different string. You can choose the search direction and choose whether your search is case-sensitive.

Indent Selection / Unindent selection

You can indent or clear the indent of selected text.

Clear History

Clears the top pane of the Script editor.

Clear Input

Clears the bottom pane of the Script editor.

Clear All

Clears both the top and bottom panes of the Script editor.

History

Batch render messages

Shows batch rendering messages in the Script editor.

Echo all commands

When this item is on, all MEL commands executed by Maya appear in the top pane of the Script editor.

For example, if you select Create > Polygon Primitives > Sphere, the corresponding MEL command (polySphere) that Maya executes is printed in the top pane.

Line numbers in errors

Shows line numbers in errors.

Show stack trace

Opens another window which lists errors and their line numbers in external script files. This is very useful for debugging scripts in external files.

Suppress command results

When turned on, the Script editor does not show the result of commands. Result messages start with // Result:.

Suppress info messages

When turned on, the Script editor does not show informational messages. Informational messages are of many different types and do not have a set prefix (except for //).

Suppress warning messages

When turned on, the Script editor does not show warning messages. Warning messages start with // Warning:.

Suppress error messages

When turned on, the Script editor does not show error messages. Error messages start with // Error:.

NoteSuppressing Script editor messages does not suppress messages from appearing in the Help Line.
Suppress stack window

When turned on, the Script editor suppresses the stack window. If stack trace is enabled, results are returned to the output window instead of a separate stack window.

The Script editor menu items can also be controlled through the scriptEditorInfo command (-sr/suppressResults, -si/suppressInfo, -sw/suppressWarnings, -se/suppressErrors, -ssw/suppressStackWindow).

Command

The following commands allow you to create, delete, and rename new tabs in the input area of the Script editor.

New Tab

Creates a new tab. You must choose whether the tab is for MEL or Python.

Rename Tab

Renames the current tab.

Select Tab

You can step through the tabs using the Previous and Next commands.

Delete Tab

Deletes the current tab.

Show line numbers

Shows line numbers in the Script editor.

Execute

Runs the MEL script in the bottom pane of the Script editor. You can also press Enter on the numeric keypad.

Saved MEL Scripts

MEL scripts are automatically saved when Maya exits and restored in the Script editor when Maya is restarted.

Additional notes

When Python requests input through stdin (for example, the Python raw_input command), a dialog box appears where you can type your input.
