Manipulators preferences




Manipulator sizes

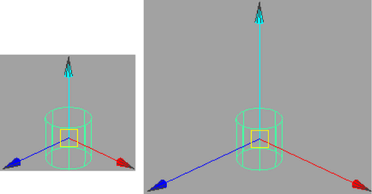

Global scale

Specifies the size of the manipulators. The range is from 0.10 to 10.00.

Handle size

Specifies the size of the handle. The range is from 4 to 100.

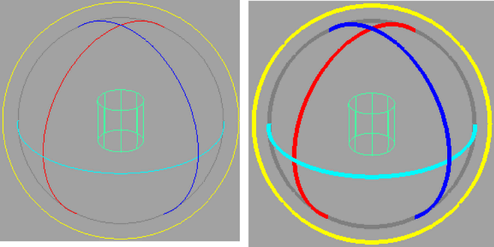

Line size

Specifies the line thickness size of the rotate manipulator’s rings.

Line pick size

Determines the line thickness used when picking the rotate manipulator rings. The pick size should be the same as line size, so you can identify which handle will be picked by the size of the ring.

Previous state size

Controls the size of the points drawn for a previous feedback. For example, for the Move Tool, an axis is drawn to indicate the previous position, with square points at the end of the axes. This controls the size of the squares.

Rotate and scale manipulators also have previous state feedback. This type of feedback is shown only when you drag; it disappears as soon as you release the mouse.

Show Manipulator

Default manipulator

You can specify a Default Manipulator option in the Show Manipulator section to control what manipulator, if any, appears when you select the Show Manipulator Tool. The Default Manipulator options include:

None

Does not display a manipulator.

Translate

Displays the Move Tool’s manipulator.

Rotate

Displays the Rotate Tool’s manipulator.

Scale

Displays the Scale Tool’s manipulator.

Transform

Displays the Transform (triple) manipulator.

Smart

Checks the first child and if it is a shape displays the history manipulator for the shape. Otherwise displays the Transform (triple) manipulator. This is the default.

Component Manipulators

Reposition using middle mouse button

Reposition the move, rotate, and scale manipulators using the middle mouse button in component mode. This moves the pivot point and manipulator in a single action.

When you -click on an area of the screen, the manipulator moves to that location and immediately is active. This is useful with the Rotate Tool as the pivot point and the manipulator move in a single action.
