Export > Include > Geometry >
Split per-vertex Normals




Activate this option in order to split geometry vertex Normals based on edge continuity.

This option only applies to MotionBuilder workflows to ensure visual fidelity of surface continuity. It lets you transfer hard edge information to MotionBuilder. This is required because of a MotionBuilder limitation. Do not use this option if you do not require hard edges in MotionBuilder, since this operation duplicates vertex information and converts geometry. If your workflow is 3ds Max to MotionBuilder, for character animations, animate, then merge the animation back into your original 3ds Max scene.

To avoid all geometry/UV issues when you transfer hard edges to MotionBuilder, do the following:

  1. Export from 3ds Max using the Split per-vertex Normals option.
  2. Do not save the geometry in the FBX file before merging the file back into an existing 3ds Max scene once you have your final animation in MotionBuilder.
  3. Since the animation is on the bones of your character, the plug-in imports all animation. Existing geometry/UVs are altered during the import process.

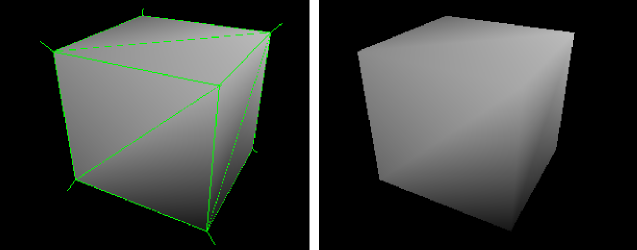

Exporting with “Split per-vertex Normals” disabled produces this result in MotionBuilder:

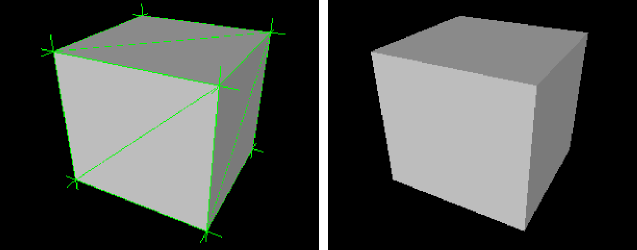

Exporting with “Split per-vertex Normals” enabled produces this result in MotionBuilder:
