txcheck Executable




The txcheck executable checks the installed Composite license for each Composite feature, checks the CPU type, configuration, and supported processor features, checks the graphics card and driver, and parses an .xml file (for example, Composite UI resource and config files, Composite composition files, (.txcomposition), Composite project (.txproject), and user (.txuser) preference files) and checks whether it is valid or not.

To show the usage of the txcheck executable:

  1. In a shell, enter txcheck.

To check the Composite license installed on a workstation:

  1. In a shell, enter txcheck license.

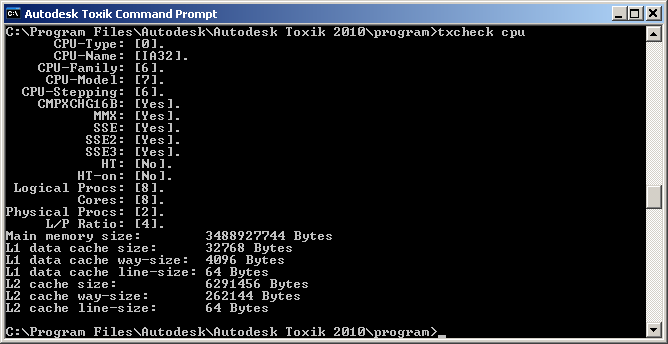

To check the cpu:

  1. In a shell, enter txcheck cpu.

    Summarized information regarding the CPU type, configuration, and supported processor features is listed. To get a full report on a cp, in a shell, enter the following: txcheck cpu full.

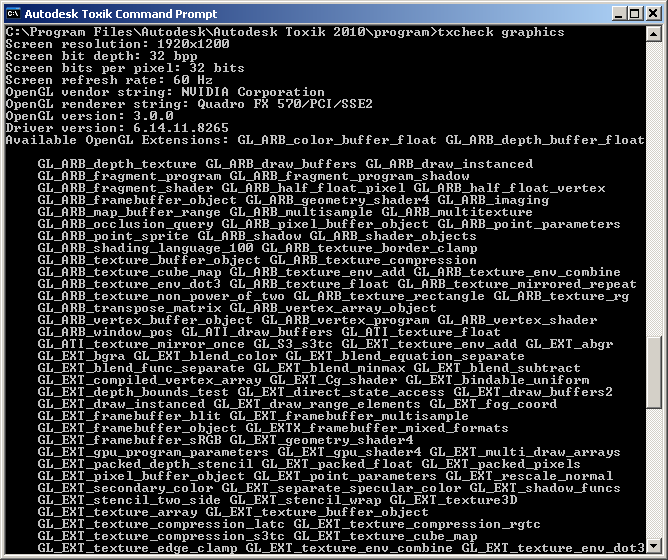

To check the graphics:

  1. In a shell, enter txcheck graphics.

    A detailed check list is displayed. The list includes information on the graphics card, driver version, screen resolution, bit depth, refresh rate, OpenGL® version, vendor string, and available OpenGL extensions.

To check the xml:

  1. Enter a single parameter to parse the given Composite xml file and check it’s validity. For example, from the Composite installation folder:txcheck xml/resources/toolUi/crop.xml.
