Slave Parameters Dialog (Block Controller)



Command entry:Track View Click and then right-click a slave track in the Track View hierarchy. Properties Slave Parameters dialog
Command entry:Track View Double-click a slave track in the Track View hierarchy. Properties Slave Parameters dialog

Every time you create a block, all tracks within the block are assigned a Slave controller, which allows the Master Block to transfer key data.

The Slave controller can be assigned without being connected to a Master Block controller. Controls in the Slave Parameters dialog allow you to attach the slave to a master. If the slave is not attached to a master, a dialog is displayed listing the available master controls you can attach to. The Track View Pick dialog is displayed, listing the tracks you can add.

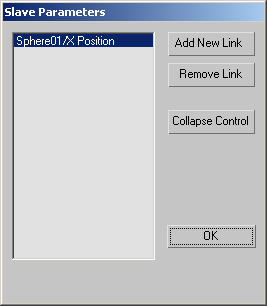

Right-click a Slave controller in the Track View hierarchy to display the Slave Parameters dialog. The list window displays any assigned tracks.

Interface

Add New Link

Adds a link. Displays the Add New Link dialog with available tracks. Click a track and then click OK.

Remove Link

Removes the highlighted link.

Collapse Control

Collapses the Slave controller to a standard controller.

Existing keys are copied to the new controller.

OK

Closes the dialog.
