About Polygon Meshes




When working with polygon meshes, there are some basic concepts you should understand.

Polygons

A polygon is a closed 2D shape formed by straight edges. The edges meet at points called vertices. There are exactly the same number of vertex points as edges. The simplest polygon is a triangle.

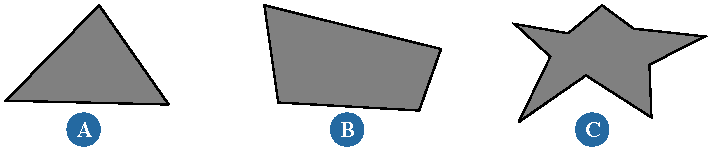

A triangle (A), a quad (B) and an N-gon (C).

Polygons are classified by the number of edges or vertices. Triangles and quadrilaterals (or quads) are the most commonly used for modeling. Triangles have the advantage of always being planar, while quads give better results when used as the basis of subdivision surfaces. Certain game engines require that objects be composed entirely of triangles or quads.

Polygons that are very long and thin, or that have extremely sharp angles, can give poor results when deforming or shading. Polygons that are regularly shaped, with all edges and angles being almost equal, generally give the best results.

Polygon Meshes

A polygon mesh is a 3D object composed of one or more polygons. Typically these polygons share edges to form a three-dimensional patchwork.

However, a single polygon mesh object can also contain discontiguous sections that are not connected by edges. These disconnected polygon "islands" can be created by drawing them directly or by combining existing polygon meshes.

Polygon Mesh Components

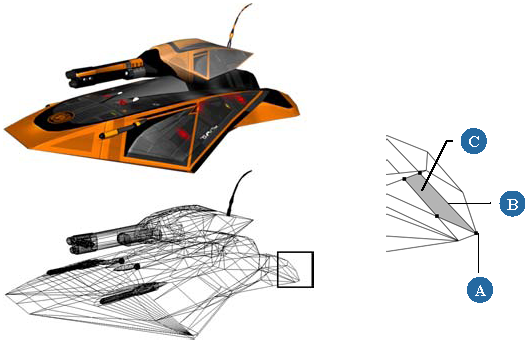

Polygon meshes contain several different types of component: points (vertices), edges, and polygons.

A

Points are the vertices of the polygons. Each point can be shared by many adjacent polygons in the same mesh.

B

Edges are the straight line segments that join two adjacent points. Edges can be shared by no more than two polygons.

Edges that are not shared represent the boundary of the polygon mesh object and are displayed in light blue if Boundaries and Hard Edges are visible in a 3D view.

C

Polygons are the closed shapes that make up the "tiles" of the mesh.

Selecting Components

Component selection is described in Selecting [Scene Elements], in particular Overview of Selection and Selecting Components.

For some additional techniques that are specific to polygon mesh components, see Selecting Polygon Mesh Components.

Displaying Components

Components are displayed automatically in 3D views when the corresponding component selection filter is active. In addition, you can display components when the filter is not active as described in Displaying Types of Elements and Other Data [Viewing and Playback].

Planar and Non-planar Polygons

When an individual polygon on a polygon mesh is completely flat, it is called planar. All its vertices lie in the same plane, and are thus coplanar. Planar polygons give better results when rendering.



Planar polygon on the ground plane with normals visible.

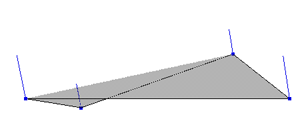

Non-planar polygon created by moving a point below the ground plane.

Triangles are always planar because any three points define a plane. However, quadrilaterals and other polygons can become non-planar, particularly as you move vertices around in 3D space. When objects are automatically tessellated before rendering, non-planar polygons are divided into triangles. However, other applications such as game engines may not support non-planar polygons properly.

When adding new polygons, there is a preference setting that prevents you from drawing non-planar polygons: see Adding and Editing Polygons (Drawing).

Valid Meshes

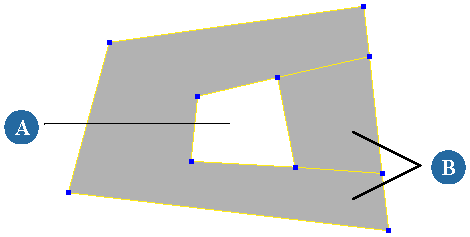

Softimage has strict rules for valid polygon mesh structures and won't let you create an invalid mesh. Some of the rules are:

Materials and Textures on Polygon Meshes

In addition to basic materials and textures, polygon meshes support a couple of specialized shading features:

Preserving Textures While Modeling

Most modeling operations on polygon meshes are texture-safe and preserve existing texture projections. However, you may encounter some problems where there are texture seams.

For example, if you collapse an edge that crosses a texture seam, the new merged point uses the average texture UVs of the previous two points and the result may not be visually correct.
