Many aspects of cross-section
manipulation are the same as for other objects, such as lights.
You can modify using transform handles and properties; see:
One difference from other
object manipulation is that by default, you can only move a cross-section
along the X, Y, or Z axis. To move a cross-section in a non-axis
direction, you must rotate it and its pivot to align with the axis
along which you want to move the cross-section. Do this as follows:
- Select the cross-section and turn on
transform handles.
- Click a rotation handle and enter the
number of degrees you want to rotate.
- Press Insert to show pivot handles.
- Click the pivot handle that corresponds
to the rotation handle you clicked earlier. Enter the same number
of degrees of rotation.
- Press Insert to show transform handles
again and drag the cross-section along the axis it is aligned with.
To add or remove objects cut by the cross-section:
- Select the objects you want to add or
remove from the cross-section.
- Right-click the cross-section icon in
the Cross-Sections overlay and select Properties.

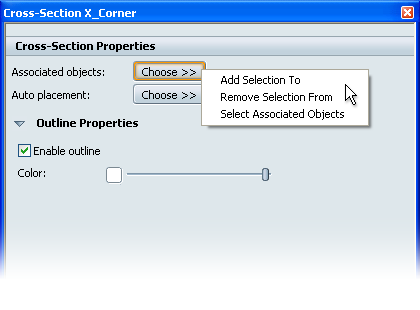

- In the Properties dialog box that opens,
click Associated objects: Choose.
- Select Add Selection To or Remove
Selection From.
Showcase includes some
automatic cross-section placement options that you can use as follows:
- Right-click the cross-section
icon in the Cross-Sections overlay and select Properties.

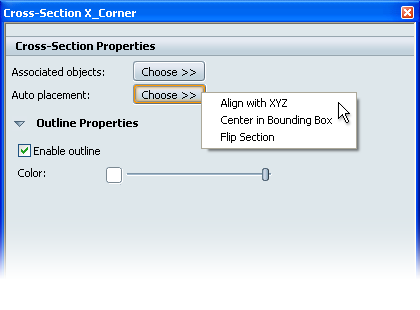

- Click the Choose button
beside Auto placement.
- Choose from the following options:
- Align with XYZ:
This rotates the cross-section to the nearest XYZ axis; in other words,
flat, or directly upright along the Y or Z axis.
- Center in Bounding Box: Moves
the cross-section to the center of the bounding box of the currently
selected object or objects.
- Flip Section:
Rotates a plane cross-section 180 degrees. (Not available for corner cross-sections.)
The side of the object that was previously visible behind the cross-section
becomes hidden, and vice versa.
Tip: To flip
a corner cross-section, show its transform handles, click a scale
handle, and enter -1.
