NoteInteractive Ray Tracing
performance is heavily dependent on processor type, speed, and number
of cores. Showcase will use all available processing power when
ray tracing. This may result in reduced efficiency for other applications
in the background.

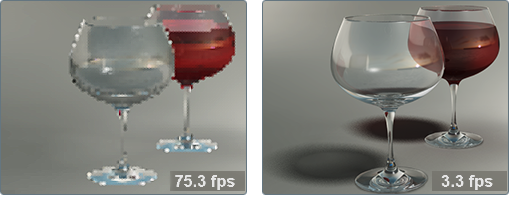

Why you must trade off
frame rate and quality
Interactive Ray Tracing, like
Hardware rendering, displays the scene interactively by rendering
the entire image frame over and over at a specific quality level.
This “framerate” is typically many times per second, but will decrease
as more rays are traced into the scene or as the number of samples
per pixel (the smoothness) is increased. In general, a high quality
image with many effects takes significantly longer to create and
display than a very basic ray traced image with limited quality.
- The number of rays traced per pixel is
based on the visible ray tracing effects (shadows, global illumination,
etc.), and on the material characteristics (transparent, reflective,
etc.) of the objects in the scene. The Performance and Quality ray
tracing Quality presets control many of these factors
at once.
- Samples per pixel determines
the number of times each pixel on screen sends rays into the scene
to determine the color of that pixel. A fractional amount will group screen
pixels together and display less than screen-resolution images very
quickly. For higher quality results, each pixel on screen is sampled
more than once to insure that fine details and high contrast edges
are accurate and smooth.
These settings work together
to produce both fast results and high quality visuals, but typically
one must be compromised for the other.
Tips for Ray Tracing performance
and quality
Improving interactive performance
- Reduce the Showcase window size. Ray
tracing is based on tracing rays from each pixel of the image, so
reducing the number of screen pixels will increase the frame rate and
any progressive refinement of the image on screen.

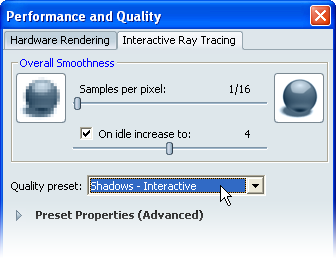

- Click Options > Performance
and Quality to open the Performance and Quality dialog
box, then click the Interactive Ray Tracing tab. Use the Overall
Smoothness sliders as follows:
- Set Samples per pixel to the lowest possible
value (1/16). This is the value at which Showcase will stop ray
tracing the view so that you can continue working on the scene. Visual
quality will not be optimal, but performance and workflow will be
good.
- Check On idle increase to and
specify a value with the slider. This value is the samples per pixel
that Showcase will ray trace in the view when you are not interacting with
the scene. If you choose to interact with the scene, ray tracing
is aborted so that you can continue your work.
- Set Samples per pixel to
the lowest value (1/16). This is the value at which Showcase will
stop ray tracing a view and allow you to continue working on the
scene. Next, check On idle increase to; its corresponding
slider controls the samples per pixel that Showcase will calculate
when it is idle. This calculation will be stopped as soon as you try
to interact with the scene. In other words, you will not be prevented
from working on a scene when this calculation is taking place.
- In the Options > Selection
Display Style menu, select a “wireframe” display method. The
“animated grid” will prevent progressive refinement.
- Move the view away from areas with lots
of transparent and refractive surfaces. Transparent and inter-reflective
objects will require more rays per pixel than other objects in the
scene, and will reduce performance when they are dominant in the
view.
Improving output quality
- In the File > Save Image
As... or File > Save Movie As...dialog
box, change the quality preset to one ending with “...Ultimate”
and set the Sampling quality to be 4 or higher.
- Test render your scene at smaller pixel
dimensions to insure the quality and effects are correct before
launching a large output render.
- Quit all other applications to make as
much system RAM available when rendering large output images or
long movies.
Ray Tracing
Status and Control Panel

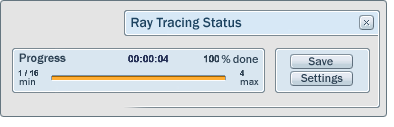

The Ray Tracing Control
Panel floats in the lower, right corner of the screen and shows feedback
on the Interactive Ray Tracing progress, and provides quick access
to Ray Tracing Settings and saving the on-screen image.
To open the Ray Tracing
Control Panel, select View > Ray Tracing
Control Panel or press the Y key.
Progress bar
A horizontal bar shows
the current Interactive Ray Tracing progress between sampling settings,
along with helpful diagnostic information. The Progress bar includes:
- Elapsed time: the
elapsed time from the last Interactive Ray Tracing restart in “hours: minutes:
seconds” format.
NoteThe Interactive Ray
Tracing progress will restart when any visual change takes place
in the scene. This could be a camera movement, material adjustment,
a change to the Ray Tracing quality preset, or many other actions.
- Percentage Done: the
amount of the maximum Samples per pixel value that has been attained.
- Samples Min: the
minimum Samples per pixel set in the
Performance and Quality dialog box. This amount is where the Ray
Tracer will begin to display an image on screen.
- Samples Max: the
maximum Samples per pixel set in the
Performance and Quality dialog box. When this amount is reached,
the ray tracer will halt and the image on screen will be “done.”
Save (current
screen image and settings)
Pressing the Save button
in the Ray Tracing Status control panel will save the current image
on screen to disk along with the ray tracing settings needed to
reproduce it in a companion XML file.
NoteThe saved image will
have the same pixel dimensions as the Showcase window and will include
any visible selection highlighting, but will not show the interface
elements or manipulators.
To save the current screen
image with a settings file:
- Deselect any objects with Ctrl-Shift-A.
- Press the Save button
when the on screen image is desired.
- Browse to a location on disk to save
the image and the Settings XML file.
- Enter a unique name for the image and
settings and choose either JPEG or TIFF as the output format.
Use
Saved screen image settings as a quality preset
The Saved screen image
quality preset XML can be used to reproduce the exact quality level
seen in that image for a larger image or animation.
- Locate the saved settings XML file on
disk. (It is saved in the same location as the screen image, with
the same name appended with “.xml”)
- Move this XML file to the My Documents\Autodesk Showcase 2011\InteractiveRaytracingSettings folder.
- Close and reopen the Performance and
Quality dialog, or Save Image As or Save Movie As dialog boxes.
The new preset will be
shown in the list of Quality presets in all dialog
boxes, and can be used to recreate the exact quality level.
NoteA saved screen image
Quality Preset XML file only contains one Samples per pixel setting,
and is not recommended for Interactive Ray Tracing. This disables progressive
improvement and the image on screen will not be displayed until
that sampling level is reached.
Settings (for Interactive
Ray Tracing)
Press the Settings button
to open the Performance and Quality dialog to
the Interactive Ray Tracing tab. If the dialog box is already open,
it will switch to the Interactive Ray Tracing tab.
Interactive
Ray Tracing Performance and Quality
NoteFor each new scene,
or scenes that have not had Ray Tracing enabled in them, the Performance
and Quality settings will be set to maximize interactivity by default. Changes
to these settings will be displayed as they are chosen, and then
saved with the file to be used each time Ray Tracing is enabled.
Insure maximum interactivity for the
scene
- Select Options > Performance
and Quality or press the Settings button
in the Ray Tracing Status UI (Y), to open the Performance
and Quality dialog box.
- Select the Interactive Ray Tracing tab
to show the ray tracing controls.
- Select a Quality preset labeled
“...Interactive” with the effects desired.
NoteRay Tracing quality
presets included with Showcase are tuned either for an interactive
experience, or for final output. The included presets are grouped
by the various major ray tracing effects (shadows, ambient shadows,
global illumination) activated by each.
Maintain a minimum interactive quality
level
A minimum screen image
quality can be maintained while allowing progressive improvements
to the image.
- Select a Quality preset with
the effects desired.
- Set the Samples per pixel slider
to the desired minimum number of samples. The scene will update
to show this level.
Locking display quality
to a constant level
Lock the display quality
- Select Options > Performance
and Quality or press the Settings button
in the Ray Tracing Status UI (Y), to open the Performance
and Quality dialog box.
- Select Quality preset with
the effects desired.
- Set the Samples per pixel slider
to the desired minimum number of samples. The scene will update
to show this level.
- Deselect the On idle increase to: option
to lock the quality to the Samples per pixel number above.

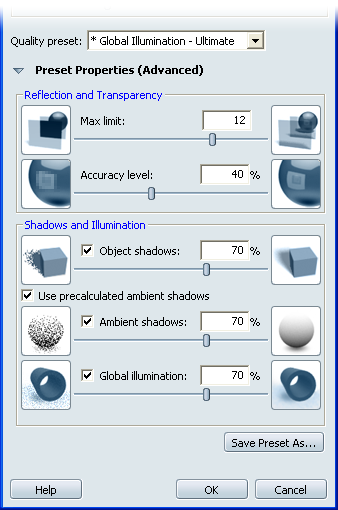

Preset Properties (Advanced)
Each quality preset includes
detailed settings for many aspects of the Interactive Ray Tracing
process. The Preset Properties fold-down exposes these controls
to tune the ray tracing for quality and performance.
NoteIf changes are made
to the Advanced Preset Properties of a selected quality preset,
an asterix (*) will appear before the preset
name in the drop-down. This indicates that these modifications are
temporary and do not alter the preset itself.

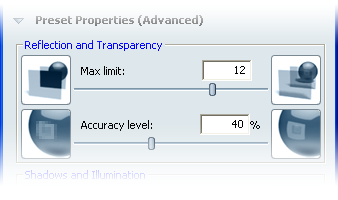

Reflections and Transparency
Ray Tracing includes
reflections and transparency in all presets, and these settings
have a large effect on interactivity. Because the same “ray” that
bounces to show reflection may instead pass through objects to show
transparency, one set of controls affects both.
- Max limit: for
efficiency in ray tracing, a limit is placed on how “deep” a ray
will continue into the scene when it is reflected or passes through
a transparent object. If transparent objects in the scene look opaque
or object reflections do not seem correct, increase this value.
NoteFor objects that
are both reflective and transparent, when the Max limit of transparency
is reached, the ray will “bounce back” as a reflection. This avoids
“black holes” in multi-layered transparencies, but can make objects
look too shiny.
- Accuracy level: the
quality of a ray traced reflection or transparency is based on the number
of rays it uses to sample objects in the scene. If objects appear
pixelated in reflections or transparency, or if Blurred
Reflections look very rough, increase this value. See
also:

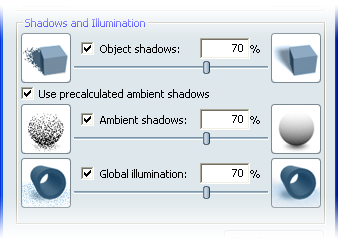

Shadows and Illumination
Additional ray tracing
effects can be activated to add shadowing and inter-object illumination
to your scene. The default quality presets will activate these features,
but they can be set individually.
NoteRay traced shadows,
ambient shadows, and global illumination significantly increase
the number of rays that are traced in the scene, reducing interactive
performance. The Quality level percentage for each effect can be
adjusted to trade accuracy for speed.
- Object shadows: on/off
and Quality level. The quality of a ray traced shadow is based on
the number of rays it uses to sample the edges of objects. Soft
shadows require more rays, and will show erratic edges when the
quality level is not high enough.
- Use precalculated ambient
shadows: if checked, precalculated shadows (see
Add ambient shadows to surfaces)
will be displayed when present. Precalculated ambient shadows will
override ray tracing ambient shadows if this is checked.
- Ambient shadows: on/off
and Quality level. Ray traced ambient shadows are not “baked” to
geometry, so they will update as items are moved or animated. The
Ambient Shadows Quality level determines how many rays are cast
for these types of shadows, and will show dots or speckled shading
when the quality level is not high enough.
- Global Illumination: on/off
and Quality level. Global Illumination is a combination of ambient
light collection and “light bouncing” from one surface to another.
The Global Illumination Quality level determines how many rays are
cast to find and disperse this illumination, and will show dots
or speckled shading when the quality level is not high enough.
Saving presets
Quality presets for interactive
and offline Ray Tracing can be saved from the Performance and Quality
dialog box. This is a good way to preserve temporary modifications
to other presets (denoted by a * in front of the name), or to create
presets based on computer capabilities or special needs.
NotePresets include all
information presented in the Interactive Ray Tracing tab of the Performance
and Quality dialog box. This includes the Overall Smoothness, Reflections and
Transparency, and Shadows and Illumination settings.
To save a custom quality
preset:
- Select Options > Performance
and Quality or press the Settings button
in the Ray Tracing Status UI (Y), to open the Performance
and Quality dialog box.
- Select Quality preset to
start your preset from, or adjust the properties individually.
- Press the Save Preset As... button.
A file browser opens
to My Documents\Autodesk
Showcase 2011\InteractiveRaytracingSettings.
NotePreset files saved
in other locations will not be loaded by Showcase. If moved to this
default location, they will be recognized.
- Give the preset XML file a descriptive
name, and press Save.
The new preset will appear
in the quality preset drop-down list for Interactive Ray Tracing, Save
Image As..., and Save Movie As... output
types.
- To share a custom quality preset with
another Showcase user, simply copy the XML file and place it in
the same “InteractiveRaytracingSettings” folder in their Showcase 2011
user directory.
- To remove a custom quality preset from
the drop-down list, move or delete the XML file from the default
“InteractiveRaytracingSettings” folder.
