Mesh > Mirror Geometry





Creates a duplicate of the selected polygons mirrored across an axis.

Related topics

Mesh > Mirror Geometry >

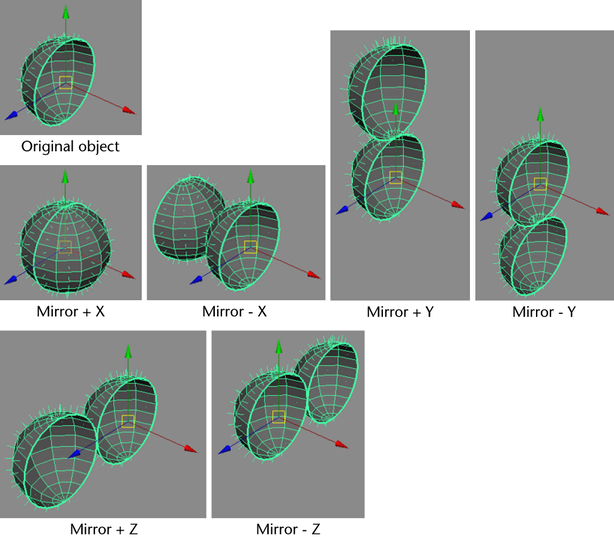

Mirror direction

Specifies the direction you want Maya to mirror the selected polygonal object. By default, the direction is +X. Change these options and click Mirror if you want to mirror the object in another direction.

Merge with the original

Selects how you want the polygons to merge.

When turned on (the default setting), Maya duplicates and flips the original polygon and merges the duplicated polygon with the original polygon. This makes the new polygonal object one shell. When turned off, Maya duplicates and flips the original polygon but does not merge the separate shells.

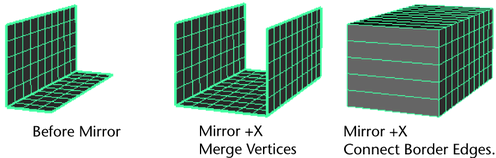

Merge vertices

Select this option to merge adjacent vertices, creating a single shell.

Connect border edges

Select this option to connect the original polygon with the mirrored polygon at the border edges, filling in faces to create a closed shape.
