Shader Type Overview

There are many types of shaders, all of which can be substituted by user-written shaders:

material shaders
describe the visible material of an object. They are the only mandatory part of any material description. Material shaders are called whenever a visible ray (eye ray, reflected ray, refracted ray, or transparency ray) hits an object. Material shaders have a central function in mental ray.
volume shaders
are called to account for atmospheric effects encountered by a ray. The state (see below) distinguishes two types of volume shaders: the standard volume shader that is called in most cases, and the refraction volume shader that is taken from the object material at the current intersection point, and becomes the standard volume shader if a refraction or transparency ray is cast. Many material shaders substitute a new standard volume shader based on inside/outside calculations. Volume shaders, unlike other shaders, accept an input color (such as the one calculated by the material shader at the last intersection point) that they are expected to modify.
light shaders
implement the characteristics of a light source. For example, a spot light shader would use the illumination direction to attenuate the amount of light emitted. A light shader is called whenever a material shader uses a built-in function to evaluate a light. Light shaders normally cast shadow rays if shadows are enabled to detect obscuring objects between the light source and the illuminated point.
shadow shaders
are called instead of material shaders when a shadow ray intersects with an object. Shadow rays are cast by light sources to determine visibility of an illuminated object. Shadow shaders are basically light-weight material shaders that calculate the transmitted color of an object without casting secondary or shadow rays. Frequently, material shaders are written such that they can also be used as shadow shaders.
environment shaders
are called instead of a material shader when a visible ray leaves the scene entirely without intersecting an object. Typical environment shaders evaluate a texture mapped on a virtual infinite sphere enclosing the scene (virtual because it is not part of the scene geometry).
photon shaders
are used to propagate photons through the model in order to simulate caustics and global illumination. Photon shaders are used in a preprocessing step in which photons are emitted from the light sources into the model (just as a real light source emits photons into the world). Each photon is traced through the scene using a technique called photon tracing which is similar to ray tracing. As with ray tracing a photon is reflected of a specular mirror surface in the mirror direction. The most important difference is the fact that the photon shader modifies the photon energy before reflecting the photon unlike ray tracing which traces a ray and then modifies the result accordingly (for example multiplies it with the specular reflection coefficients). Photon shaders also store information about the incoming photon in a global photon map which contains all photons stored in the model. This photon map is then used by the material shaders during the rendering step (ray tracing step) to simulate caustics and global illumination. Frequently, material shaders are written such that they can also be used as photon shaders (and also shadow shaders).
photon volume shaders
are similar to photon shaders in the same way that volume shaders are similar to material shaders: they compute indirect light interactions in volumes, such as volume scattering.
photon emitter shaders
are used to control the emission of photons from a light source. Combined with the light shaders it is possible to simulate complex light sources with complex emission characteristics. Photon emitters are only used if caustics or global illumination are enabled, to construct a photon map before the actual rendering takes place.
texture shaders
come in three flavors: color, scalar, and vector. Each calculates and returns the respective type. Typical texture shaders return a color from a texture image after some appropriate coordinate transformation, or compute a color at a location in 3D space using some sort of noise function. Their main purpose is to relieve other shaders, such as material or environment shaders, from performing color and other computations. For example, if a marble surface were needed, it should be written as a texture shader and not a material shader because a texture shader does not have to calculate illumination by light sources, reflections, and so on. It is much easier to write a texture shader than a material shader. mental ray never calls a texture shader directly, it is always called from one of the other types of shaders.
displacement shaders
are called during tessellation of polygonal or free-form surface geometry, a procedure that creates triangles to be rendered. Displacement shaders are called to shift the created vertices along their normals by a scalar distance returned by the shader. mental ray supports approximation controls that allow adjusting the tessellation to better resolve curvature introduced by displacement shaders.
geometry shaders
are run before rendering begins. They create geometry procedurally by using a function call library that closely follows the .mi2 scene description language. Unlike displacement shaders, which are called once per vertex, geometry shaders are responsible for creating an entire object or object hierarchy (each of which, when tessellated later, can cause displacement shader calls).
contour shaders
come in four different flavors: contour store shaders, contour contrast shaders, contour shaders, and contour output shaders. For details see section contour.
lens shaders
are called when a primary ray is cast by the camera. They may modify the eye ray's origin and direction to implement cameras other than the standard pinhole camera, and may modify the result of the primary ray to implement effects such as lens flares.
output shaders
are different from all other shaders and receive different parameters. They are called when the entire scene has been completely rendered and the output image resides in memory. Output shaders operate on the output image to implement special filtering or compositing operations. Output shaders are not associated with any particular ray because they are called after the last ray is completed.
lightmap shaders
can be attached to materials to scan the surface of an object, collecting data and optionally writing a writable texture to disk. This can be used to "bake" illumination solutions into a texture, for example.
state shaders
can be attached to the options block. They are called on four occasions: Once a state is created, once a state is destroyed, just before the first regular shader for a sample is called, and just before the computed sample is written to the frame buffer. These four cases may be distinguished by different constants passed to the shader. These shaders may be used to manipulate the state of mental ray. A common application is to add some data to the state that is needed by various shaders during rendering.

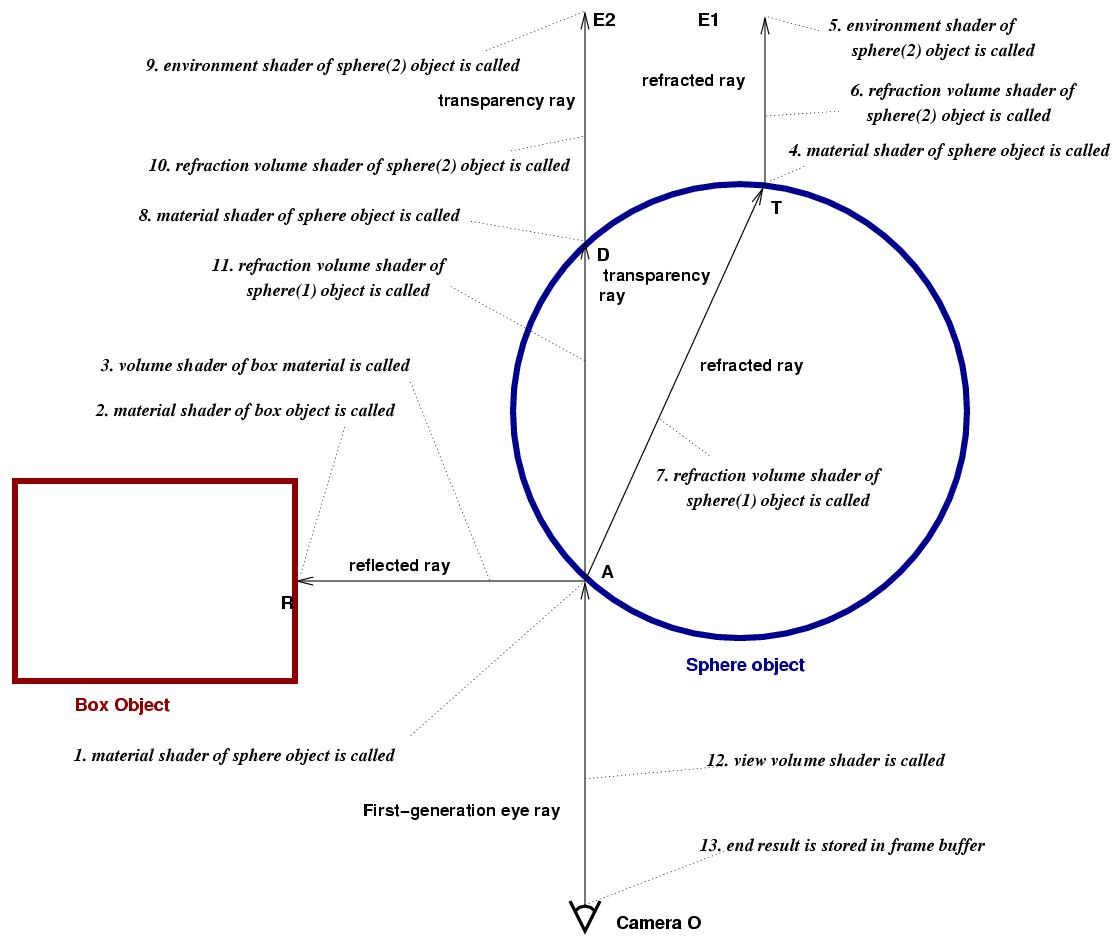

The following diagram illustrates the path of a ray cast by the camera. It first intersects with a sphere at point A. The sphere's material shader first casts a reflection ray that hits a box, then a refraction ray that intersects the sphere at its other side T, and finally it casts a transparency ray that also intersects the sphere, at D. (This example is contrived, it is very unusual for a material shader to cast both a refraction and a transparency ray.) The same material shader is called at points A, T, and D. In this example, the reflection trace depth may have prevented further reflection rays to be cast at T and D.

The annotations set in italics are numbered; the events described happen in the sequence given by the numbers.

Since material shaders may do inside/outside calculations based on the surface normal or the parent state chain (see below), the volume shaders are marked (1) and (2), depending on whether the volume shader left by A or by T/D in the refraction volume field of the state. The default refraction volume shader is the one found in the material definition, or the standard volume shader if the material defines no volume shader. For details on choosing volume shaders, see the section on writing material and volume shaders. Note that the volume shaders in this diagram are called immediately after the material shader returns.

mental ray 3.0 also supports a autovolume mode, enabled in the options block with autovolume on. In this mode, mental ray finds out which volumes the camera is in by casting a single ray to infinity, and offers four shader API functions that tell the shader which volumes the current intersection point is in. Shader declarations may contain autovolume levels that define which volumes mix and which volumes displace others.

The next two diagrams depict the situation when the material shader at the intersection point M requests a light ray from the light source at L, by calling a function such as mi_sample_light. This results in the light shader of L to be called. No intersection testing is done at this point. Intersection testing takes place when shadows are enabled and the light shader casts shadow rays by calling mi_trace_shadow. This function is called only once but may result in more than one shadow shader call. There are four different modes for shadow casting, listed in the order of increased computational cost:

shadow off

No shadows are computed, and no shadow shaders are called. Call to mi_trace_shadow return immediately without modifying the result color.
shadow on

For each obscuring object (A and B), a shadow ray is generated with the origin L and the intersection point A or B, and the shadow shaders of objects A and B are called to modify the light emitted by the light source based on the transparency attributes of the obscuring object. No shadow ray is generated for the segment from B to M because no other obscuring object whose shadow shader could be called exists. Although shadow rays always go from the light source towards the illuminated point in this mode, the order in which the shadow shaders are called is undefined. If an object without shadow shader is found, or if a shadow shader returns miFALSE, it is assumed that no light reaches the illuminated point and the search for more obscuring objects is stopped (although the light shader has the option of ignoring this result and supplying some light anyway). See the first diagram below. The volume shader of the illuminated object M is applied to the entire distance between M and L.
shadow sort


Same as the previous method, but shadow shaders are called in distance order, object closest to the light source first. In the first diagram, steps 4 and 5 may be reversed.
shadow segments

This mode is more sophisticated than the others. Shadow rays become similar to visible rays; they travel in segments from the illuminated point to the first obscuring object, then from there to the next obscuring object, and so on until the light source is reached. This means that shadow rays travel in the opposite direction, and one shadow ray's end point becomes the next shadow ray's origin. Volume shaders are called for each of these segments, and every shadow shader must perform inside/outside calculations to store the correct volume shader in state→volume much like material shaders to. This mode is preferred if volume effects should cast shadows.

Note that the shadow segment mode requires complex shadow shaders to behave differently. Every shadow shader must be able to work with all these modes, so shadow shaders that deal with volumes or depend on the ray direction must test state→options→shadow to determine the mode. In case an incorrectly implemented shadow shader fails to call mi_trace_shadow_seg to evaluate other shadows, mental ray will call mi_trace_shadow_seg and then call the shadow shader again, thus simulating the effect.

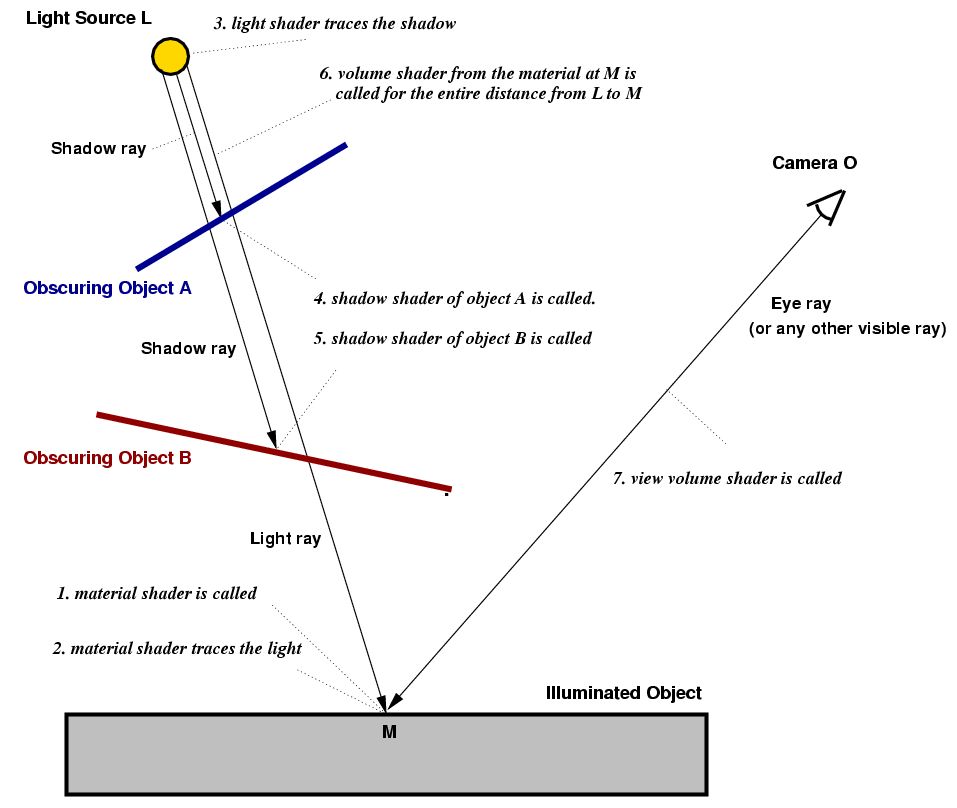

The first diagram shows the ray casting order and the ray directions for the shadow on and shadow sort modes:

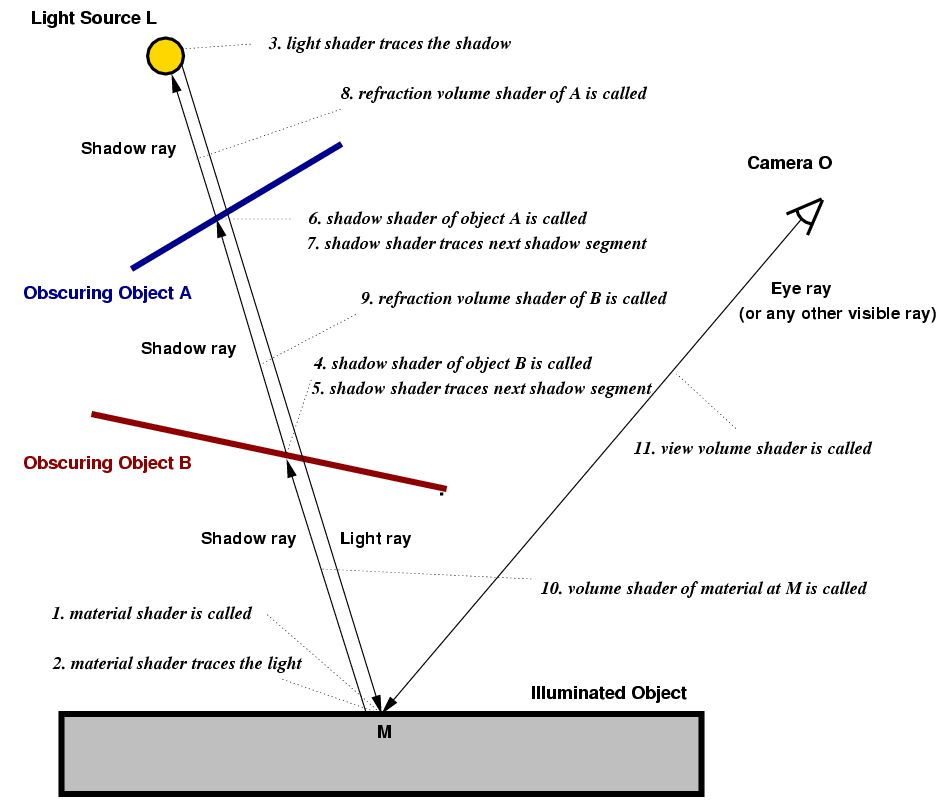

The next diagram shows the same situation in shadow segments mode:

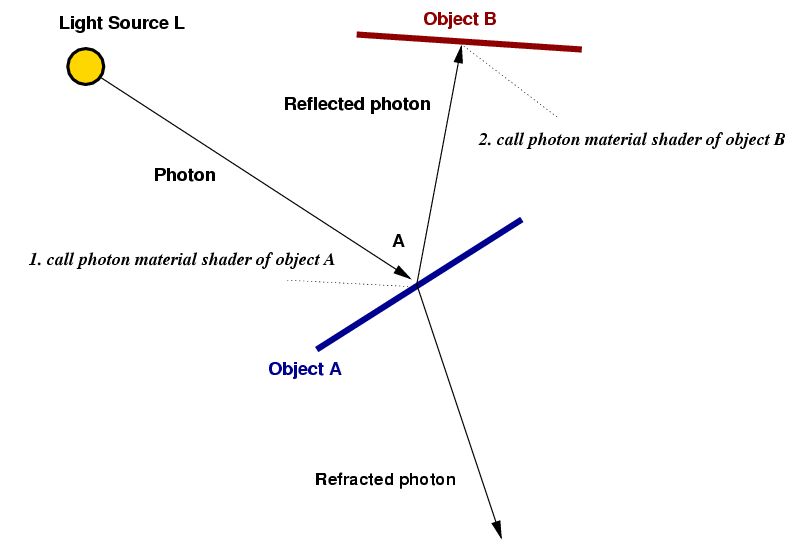

The following diagram illustrates the path of a photon shot from the light source in the caustics or global illumination preprocessing phase. First a photon is traced from the light source. It hits object A, and the photon material shader of object A is called. The photon material shader stores energy at the intersection point and determines how much energy is reflected and how much is refracted, and the directions of reflection and transmission. It then traces a new photon from A, in the reflection direction, or in the transmission direction, or both. The reflected photon hits object B, and the photon material shader of object B is called. The photon material shader of object B stores energy at the intersection point and shoots a new photon.

The remainder of this chapter describes how to write all types of shaders. First, the concepts of ray tracing state parameter passing common to all shaders are presented, followed by a detailed discussion of each type of shader.
