Create a flat surface inside a curve




The Planar action creates a flat, trimmed NURBS surface inside a curve.

  1. Select a closed, planar curve, or multiple curves that form a closed, planar region.

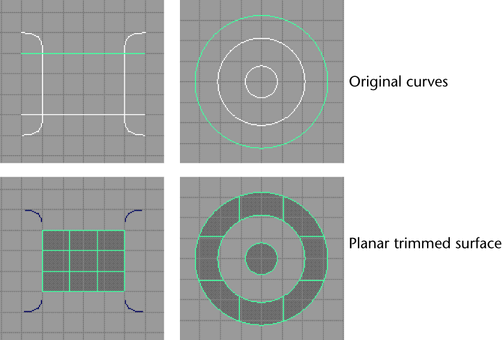

    You can select multiple curves that form an enclose region by overlapping. They do not need to be connected end-to-end.

  2. Choose Surfaces > Planar.
