Paint Deform Panel



Command entry:Modeling ribbon Freeform tab Paint Deform panel

Paint Deform provides tools for deforming mesh geometry interactively and intuitively by dragging the mouse over an object surface. The primary tools are Shift, for moving vertices with falloff in the direction you drag the mouse, and Push/Pull, for moving vertices inward and outward. Additional tools include Smudge, Flatten, Noise, and more.

Paint Deform tools work the same way at the object level and at all sub-object levels, and are independent of any sub-object selection. To exit a Paint Deform tool, click its button again or right-click in the active viewport.

Interface

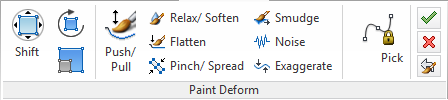

Paint Deform panel on minimized ribbon

Paint Deform panel on maximized ribbon

Paint Deform panel floating

Shift / Shift Rotate / Shift Scale

Move, rotate, or scale sub-objects around in screen space (perpendicular to the viewing direction) with an adjustable falloff effect. The Shift tools are roughly equivalent to transforming with Soft Selection, but no initial selection is necessary.

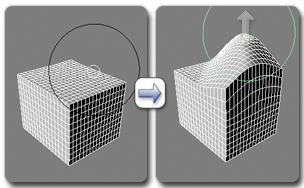

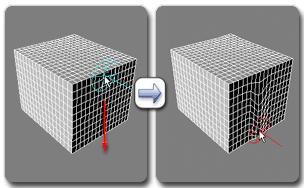

Using Shift on a mesh object

Shift affects only vertices within the brush area when you start to drag; to affect other vertices, release and then drag again.

When you activate the Shift tool, its Options panel opens with settings for adjusting the tool’s effect. Certain settings are also available via the following keyboard modifiers:

  • Ctrl Drag vertically to change the radius of the Falloff (black) circle.
  • Shift Drag vertically to change the radius of the Full Strength (white, inner) circle.
  • Shift+Alt Drag vertically to change the Strength % value.
Note Revert works with the Shift tool only after you use another Paint Deform tool, such as Push/Pull. For example, if you use Push/Pull, don't use Commit, then use Shift, you can then use Revert to "paint" the object to its previous shape, including the shifted parts.
Push/Pull

Drag the brush to move vertices outward; Alt+drag to move them inward.

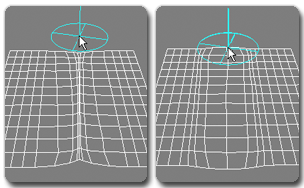

Using Pull (left) and Push (right) on a mesh object

Following is a list of other effects available with keyboard alternatives:

  • Ctrl Reverts to the previous saved state.
  • Shift Relaxes the mesh.
  • Ctrl+Shift Resizes the brush.
  • Shift+Alt Changes the brush strength.

Change brush size, strength, and other settings on the Paint Options Panel.

Relax/Soften

Drag the brush to smooth out the surface; for example, to round off corners.

NoteWith most other brushes, you can apply Relax/Soften by dragging with Shift held down.

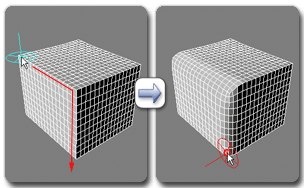

Using Relax/Soften on a mesh object

Following is a list of effects available with keyboard alternatives:

  • Alt Drag the brush to relax the mesh without shrinking.
  • Ctrl Reverts to the previous saved state.
  • Ctrl+Shift Resizes the brush.
  • Shift+Alt Changes the brush strength.

Change brush size and strength on the Paint Options Panel.

Smudge

Drag to move vertices around. Smudge is roughly equivalent to the Shift tool, but updates the area of effect continually as you drag, and doesn’t use falloff.

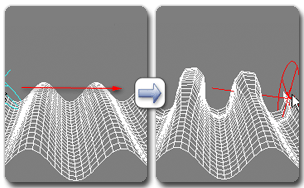

Using Smudge on a mesh object

Following is a list of effects available with keyboard alternatives:

  • Alt Drag the brush to move vertices horizontally only (prevents movement in normal direction).
  • Ctrl Reverts to the previous saved state.
  • Shift Relaxes the mesh.
  • Ctrl+Shift Resizes the brush.
  • Shift+Alt Changes the brush strength.

Change brush size and strength on the Paint Options Panel.

Flatten

Drag the brush to flatten convex and concave areas.

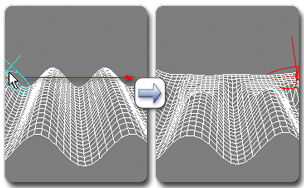

Using Flatten on a mesh object

Following is a list of effects available with keyboard alternatives:

  • Ctrl Reverts to the previous saved state.
  • Shift Relaxes the mesh.
  • Ctrl+Shift Resizes the brush.
  • Shift+Alt Changes the brush strength.

Change brush size and strength on the Paint Options Panel.

Pinch/Spread

Move vertices closer together by dragging, or spread them apart with Alt+drag.

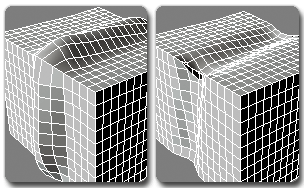

Using Pinch (left) and Spread (right) on a mesh object

Following is a list of additional effects available with keyboard alternatives:

  • Ctrl Reverts to the previous saved state.
  • Shift Relaxes the mesh.
  • Ctrl+Shift Resizes the brush.
  • Shift+Alt Changes the brush strength.

Change brush size and strength on the Paint Options Panel.

Noise

Drag to add convex noise to the surface, or Alt+drag to add concave noise.

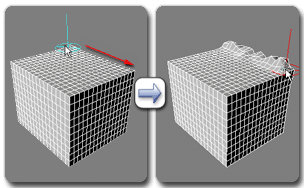

Using Noise on a mesh object

Following is a list of additional effects available with keyboard alternatives:

  • Ctrl Reverts to the previous saved state.
  • Shift Relaxes the mesh.
  • Ctrl+Shift Resizes the brush.
  • Shift+Alt Changes the brush strength.

Change brush size, strength, and other settings on the Paint Options Panel.

Exaggerate

Makes the features of the painted surface more pronounced by moving convex areas outward and concave areas inward.

Using Exaggerate on a mesh object

Following is a list of effects available with keyboard alternatives:

  • Alt Inverts the exaggeration, making convex areas concave and vice-versa.
  • Ctrl Reverts to the previous saved state.
  • Shift Relaxes the mesh.
  • Ctrl+Shift Resizes the brush.
  • Shift+Alt Changes the brush strength.

Change brush size, strength, and other settings on the Paint Options Panel.

Constrain to Spline
When active, and a spline is defined, painting with any Paint Deform tool except the Shift tools restricts brush movement to the spline (as a path), and projects the painting effect from the view plane through to the spline.

For best results, follow this procedure:

  1. Create a spline and position it on or near the surface of the editable poly or Edit Poly object to deform.

    Spline positioned on object surface

  2. Click the Pick button below or next to the Constrain To Spline button and then select the spline.
  3. Choose the Paint Deform tool, such as Noise, and turn on Constrain to Spline.

    Now, when you move the mouse in the active viewport, the paint brush gizmo is attached to the spline and can move only along its length.

  4. Paint as normal to produce the deformation as constrained by the spline.

    After using Push/Pull tool with star-shaped spline path

Pick (or spline name)
To define a spline for use as a path by Constrain To Spline, click this button and then select the spline to use. When a spline is already defined, the button label is the name of the spline. To change the spline, repeat the process with the new spline.
Revert

Paint to restore the mesh to its previous shape, before the last use of Commit (see following).

If you haven’t used Commit yet, Revert goes back to the object’s initial shape.

Following is a list of effects available with keyboard alternatives:

  • Shift Relaxes the mesh.
  • Ctrl+Shift Resizes the brush.
  • Shift+Alt Changes the brush strength.

Change brush size and strength on the Paint Options Panel.

Note Revert works with Shift only after you use another Paint Deform tool, such as Push/Pull. For example, if you use Push/Pull, then immediately use Shift, you can then use Revert to "paint" the object to its previous shape, including the shifted parts.
Commit

Sets the restore buffer to the current state of the object.

After using Commit, using Cancel or the Revert brush (see preceding) returns the model to its shape when you last used Commit.

Cancel

Removes any changes made with Paint Deform since the last Commit.

If you haven’t used Commit, returns the model to its initial shape.

  • Shift Options Panel

    This panel, which floats by default, opens when any Shift tool is active, and provides settings for modifying its effects.

  • Paint Options Panel

    This panel opens when Paint Deform tools other than Shift are active, and provides settings for modifying their effects.
