Normals Make Normal Shader (MetaSL)



Command entry: Slate Material Editor Material/Map Browser Maps MetaSL Normals Make Normal

Generates normals from color values, typically by using a texture map.

Interface

Normals Make Normal rollout

Color

Sets a color to use for generating normals. Typically, you would replace this with a texture map.

Amount

Sets the amount of the effect. At 0.0, normals are not changed. Default=1.0.

The map buttons at the right are shortcuts to the Maps rollout.

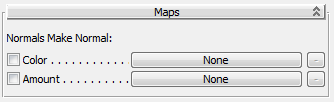

Maps rollout

The controls on this rollout let you assign a shader to one of the basic parameters of the Normals Make Normal shader. This is comparable to using a map as a component of a standard material; by adding shaders, you can create a shader tree that generates complex effects.

Click the button for a component to display the Material/Map Browser and assign the map or shader. Use the toggle at the left to turn the effect of the map off or on.

The button to the right of each main shader button, for shaders that return multiple parameters, is inactive.
