mental ray Sun & Sky



Command entry:Daylight system Modify panel Daylight Parameters rollout Sunlight/Skylight drop-down lists mr Sun / mr Sky

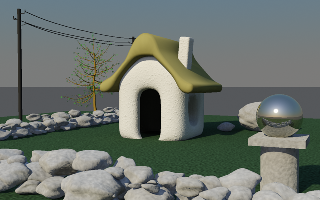

The mental ray Sun & Sky solution is designed to enable physically plausible daylight simulations and accurate renderings of daylight scenarios.

In 3ds Max, this is achieved through the use of two special photometric lights and an environment shader that all work together:

These lights are meant to be used together: mr Sun and mr Sky appear within the 3ds MaxDaylight system. When used in combination, this solution is called Sun & Sky.

TipYou can view the Sun & Sky combination in a viewport, which makes adjusting parameters fully interactive. For details, see this procedure.
NoteSun & Sky is a true high-dynamic range photometric lighting system that requires the mr Photographic Exposure Control to be enabled. In some of the mental ray rendering presets, such as those starting with “mental.ray.daylight,” this is done automatically. Also, when you add a Daylight System from the Create menu, you have the option to activate the exposure control automatically.

These articles, written for 3ds Max Design, have useful information about mental ray Sun and Sky:

Using Sun & Sky with SSS Materials

To use a mental ray fast SSS material together with the high-dynamic range Sun & Sky solution, be sure to turn on Scatter Indirect Illumination on the material's Advanced Options rollout so that the material can scatter the skylight, which is considered indirect.

Also, turn off Screen (Soft) Compositing Of Layers, also on the Advanced Options rollout; otherwise the output of the SSS shaders is clamped to a low dynamic range and will appear to render black.

Common Parameters

Certain parameters do the same things in mr Sun, mr Sky, and mr Physical Sky. For physical correctness, it is necessary to keep these parameters in sync with each other in all three elements. For example, a sun with a different Haze value than the sky cannot be guaranteed to be physically plausible.

For this reason the concept of parameter inheritance is included. Both the mr Sun light and the mr Physical Sky shader have check boxes labeled “Inherit from mr Sky” that are on by default. When these are on, the common parameters are all guided by the mr Sky light, which is the central point of control.

With parameter inheritance, you can concentrate on tweaking the parameters in one spot (mr Sky) and, as long as Inherit From mr Sky is on for both mr Sun and mr Physical Sky, you're sure to obtain consistent results.

Procedures

To use mental ray Sun & Sky:

  1. Make sure mental ray is the active renderer.
  2. From the Create menu, choose Lights Daylight System.

    You can also find Daylight System on the Create menu under Systems, and from Create panel Systems.

  3. You're prompted to use the mr Photographic Exposure Control. Click Yes to do so automatically.

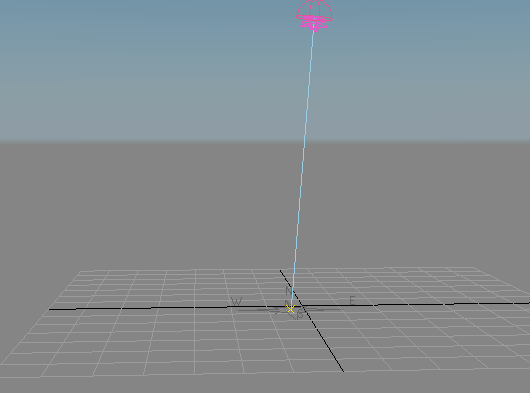

  4. Create a Daylight system in the Perspective (or a Camera) viewport: Drag and release to create the compass rose, move the mouse to position the light, and then click to place the light and finish creating the system.
  5. Go to the Modify panel, and on the Daylight Parameters rollout, set Sunlight to mr Sun and Skylight to mr Sky.
  6. When you choose mr Sky, you're prompted to add a mr Physical Sky environment map. Click Yes to do so.

    The parameters rollouts for mr Sun and mr Sky now appear on the Modify panel.

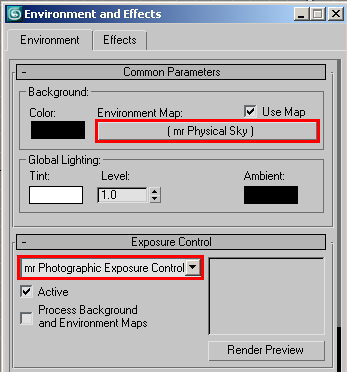

  7. Open the Environment dialog (press 8) and make sure Common Parameters Environment Map is set to mr Physical Sky, Exposure Control is set to mr Photographic Exposure Control.
    TipShould you wish to edit the mr Physical Sky parameters, an easy way to access them is to open the Material Editor (press M) and then drag the Environment Map button from the Environment panel Common Parameters rollout to a material slot (sample sphere) in the Material Editor. When prompted for the copy method, choose Instance.

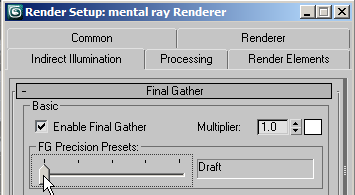

  8. Open the Render Setup dialog (F10) to the Indirect Illumination panel and make sure Enable Final Gather is on. Choose the Draft preset as a starting point; this is the leftmost position of the FG Precision Presets slider.
    ImportantWhen using Sun & Sky, make sure Enable Final Gather is on. Because the skylight is a form of indirect light, it can be rendered only with the help of Final Gather. Without final gathering, Sun shadows render as unnaturally dark or black rather than bluish, as they are in the real world.

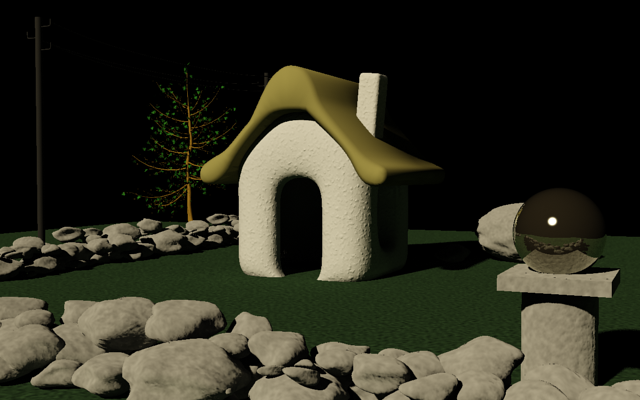

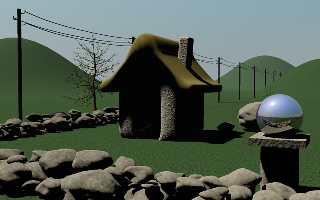

    Final Gather off

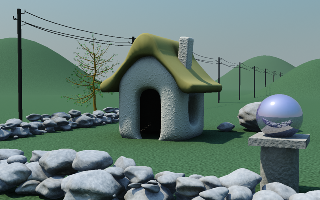

    Final Gather on

  9. Render with Sun & Sky. To specify different times, dates, and locations in the Daylight system for different effects, use the Motion panel Control Parameters settings or turn on Manual Override to place the sun by hand.
    TipFor a more pleasing image, adjust the mr Photographic Exposure Control settings.

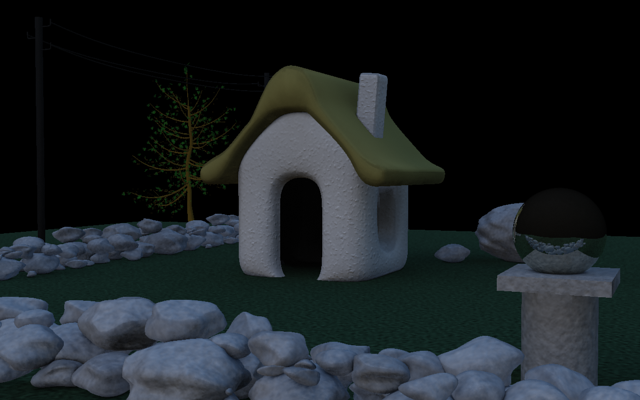

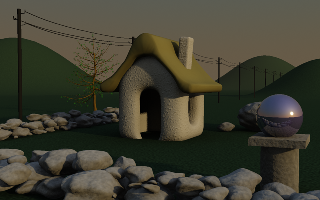

    6 AM

    9 AM

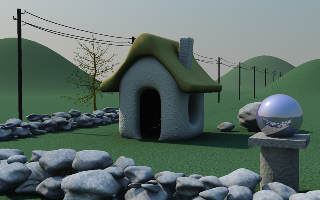

    1 PM

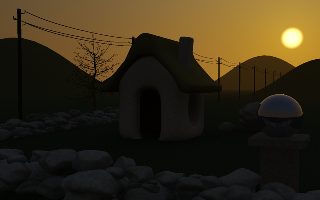

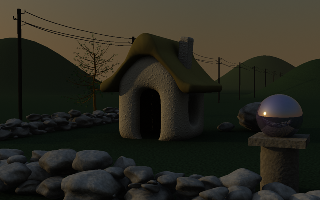

    6 PM

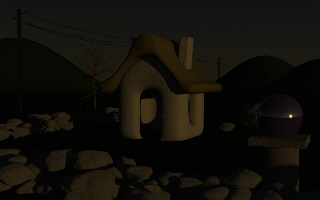

    7 PM

    Manual sun position

To see the sun and sky in the viewport:

The ability to display the mental ray Sun & Sky solution in the viewport lets you adjust parameters interactively, so that you can visualize the results immediately without having to render. Keep in mind, though, that the viewport representation is an approximation of the final result, so you’ll still need to render while fine-tuning the settings.

NoteTo use this feature, the display driver must be set to Direct3D (see Display Driver Selection Dialog).
  1. Follow the above procedure for adding mental ray Sun & Sky to your scene.

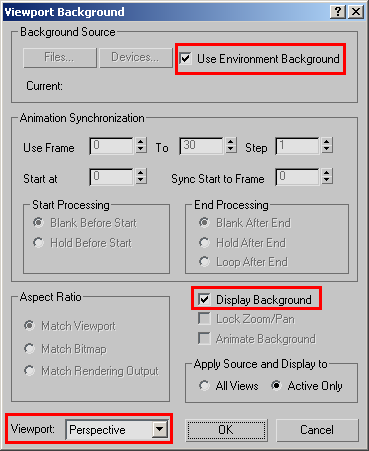

  2. Open the Viewport Background dialog: Views menu Viewport Background.
  3. In the Background Source group, turn on Use Environment Background.
  4. At the bottom of the dialog, make sure Viewport is set to Perspective, and then turn on Display Background in the lower-right group of controls.
  5. Click OK.

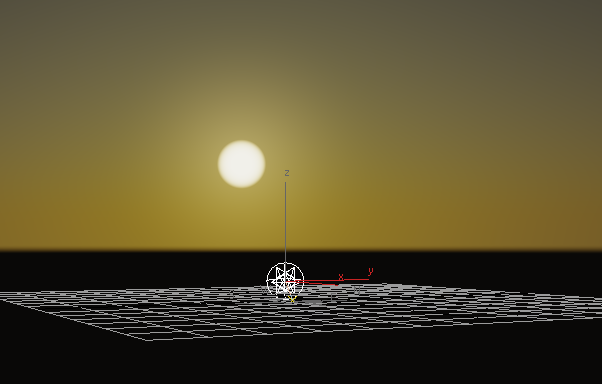

    After a moment, the viewport background changes to show the environment.

  6. If necessary, orbit the Perspective viewport so you get a view of the horizon.
  7. Go to the Motion panel, select the Daylight object if necessary, and then change the Time group Hours or Month setting using the spinner control.

    As you adjust the setting, the sky light reflects the change.

  8. Adjust the hour so the sun is near the horizon, and then, if necessary, orbit the viewport so the sun is visible.
  9. Go back to the Modify panel and adjust the settings on the mr Sky Parameters rollouts such as Multiplier and Red/Blue Tint.

    As you adjust the settings, the viewport shows the changes.

Interface

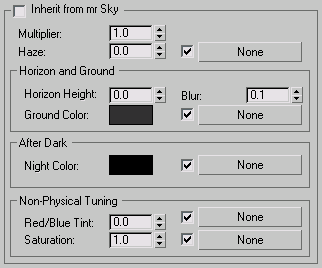

Interface (common parameters)

The most important common parameters are those that drive the entire shading and colorization model.

Notemr Sun and mr Physical Sky can inherit parameters from mr Sky even if the latter is off.
Multiplier

A scalar multiplier for the light output. Default=1.0.

Haze

In mr Physical Sky, the Haze setting corresponds to the Haze setting used by the Haze-Driven sky model.

Horizon Height

The vertical position of the horizon.

The default value, 0.0, places the horizon at a standard height. However, because the horizon is infinitely far away, this can cause trouble joining up with any finite geometry that is supposed to represent the ground. It can also cause issues rendering locations that are supposed to be at a high altitude, like mountain tops or the top of New York skyscrapers where the horizon really is visibly “below” the viewer.

This parameter allows tuning the position of the horizon. Note that this horizon doesn’t actually exist at a specific height in 3D space; it is a shading effect for rays that go below a certain angle. This parameter tweaks that angle. The total range available range is somewhat extreme, reaching from -10.0 (the horizon is “straight down”) to 10.0 (the horizon is at the zenith). In practice, only much smaller values are actually useful. For example, to push the horizon down just below the edge of a finite visible ground plane, use –0.2.

NoteThe Horizon height affects not only the visual representation of the horizon in the mr Sky light, but also the color of the mr Sun itself. In other words, the point where the sun “sets” will change for a Horizon height settings other than 0.0.
Horizon Blur

The “blurriness” with which the horizon is rendered.

At 0.0 the horizon is completely sharp. Generally only values lower than 0.5 are useful, but the full range is up to 10.0 for a horizon that consists of blur only, with no actual horizon at all.

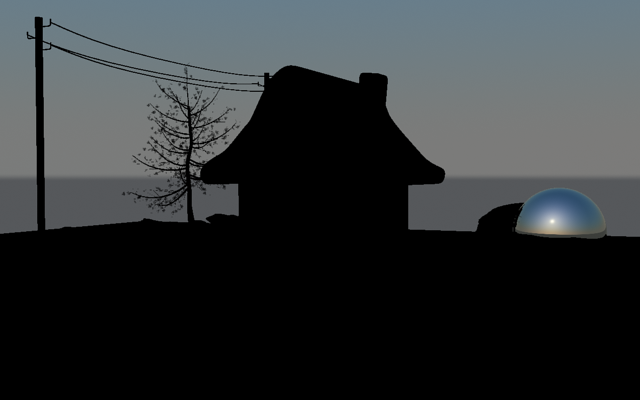

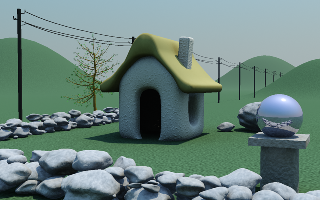

Horizon Height=0.0; Horizon Blur=0.0

Horizon Height=–0.3; Horizon Blur=0.2

Ground Color

The color of the virtual ground plane. Note that this is a diffuse reflectance value (that is, albedo). The ground appears as a Lambertian reflector with this diffuse color, lit by the sun and sky only, and does not receive any shadows.

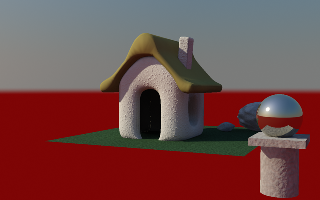

Red ground

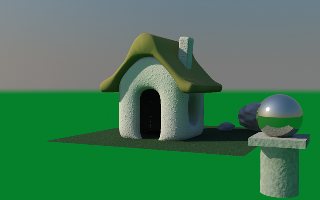

Green ground

NoteIn the above images, bounce-light from the ground tints the walls of the house. Also, the virtual ground plane does not receive shadows.
TipSome sky models neglect the influence of bounce light from the ground, assuming only the sky is illuminating the scene. To compare the output of mr Sky with, for example, the IES Sky light, set Ground Color to black.
Night Color

The minimum color of the sky: The sky will never become darker than this value. It can be useful for adding things like moon, stars, high-altitude cirrus clouds that remain lit long after sunset, etc. As the sun sets and the sky darkens, the contribution from Night Color is unaffected and remains as the base light level.

Red/Blue Tint

Gives artistic control over the redness of the light. The default value of 0.0 is the physically correct value (calculated for a 6500K whitepoint), but can be changed with this parameter, which ranges from –1.0 (extremely blue) to 1.0 (extremely red).

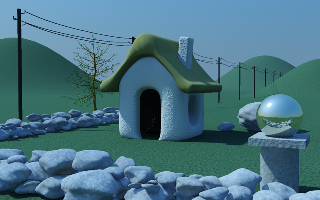

Red/Blue Tint=–0.3

Red/Blue Tint=0.3

Saturation

Also an artistic control, where 1.0 is the physically calculated saturation level. The parameter ranges from 0.0 (black and white) to 2.0 (extremely boosted saturation).

  • mr Sun

    The mr Sun light is intended for use in the mental ray Sun & Sky combination. This topic mainly provides information on parameters unique to this component. A number of mr Sky parameters are common to all three Sun & Sky components. For some of those parameters, this topic provides a brief explanation plus a link to the main topic with additional details.

  • mr Sky

    The mr Sky light is intended for use in the mental ray Sun & Sky combination. This topic mainly provides information on parameters unique to this component. A number of mr Sky parameters are common to all three Sun & Sky components. For some of those parameters, this topic provides a brief explanation plus a link to the main topic with additional details.

  • mr Physical Sky

    The mr Physical Sky shader is intended primarily for use in the mental ray Sun & Sky combination. This topic mainly provides information on parameters unique to this component. A number of mr Physical Sky parameters are common to all three Sun & Sky components. For some of those parameters, this topic provides a brief explanation plus a link to the main topic with additional details.

  • mr Sky Portal

    The mr (mental ray) Sky Portal object provides an efficient method of “gathering” existing sky lighting in interior scenes without requiring high final gather or global illumination settings that would result in excessively long render times. In effect, a portal acts as an area light that derives its brightness and coloring from the environment.
