TIFF Files




TIFF (Tagged Image File Format) is a multiplatform bitmap format originating on the Macintosh® and in desktop-publishing applications. TIFF is a common choice if you plan to send your output to a print service bureau or import the image into a page-layout program.

There are several classes of TIFF files, each varying in the color depth and color palette that they support.

You can render TIFF files with alpha, luminance, and UV color coordinate information, which describes illuminance. You also have the option to render a compressed image. Luminance and illuminance data are rendered by the Lighting Data Exporter utility.

Interface

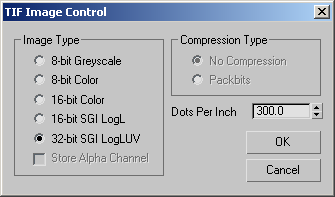

To open the TIF Image Control dialog, click Save or Setup on the Render Output File dialog.

When you render to a TIFF file, you have the following options:

Monochrome

Creates an 8-bit grayscale image.

Color

Creates a 24-bit color image (no alpha channel).

Image Type group

Lets you choose the method for saving image information:

  • 8-bit GreyscaleCreates an 8-bit grayscale image.
  • 8-bit ColorCreates an 8-bit color image.
  • 16-bit ColorCreates a 16-bit color image.
  • 16-bit SGI LogLCreates a color image that includes a logarithmic encoding of the luminance channel.
  • 32-bit SGI LogLUVCreates a color image that includes a logarithmic encoding of the luminance channel and UV color coordinate information.
Store Alpha Channel

When on, stores the alpha channel along with other image data. Alpha data adds 8 bits per pixel to the image type you selected.

Compression Type group

Lets you render a compressed TIFF file. Default=No Compression.

  • No CompressionDoes not compress the rendered image.
  • PackbitsUses the TIFF Packbits algorithm to compress the file.

_____

Dots Per Inch

Sets the dots per inch (dpi) for the saved image. This setting does not change the resolution of the final image, but can affect the way it prints in documents.
